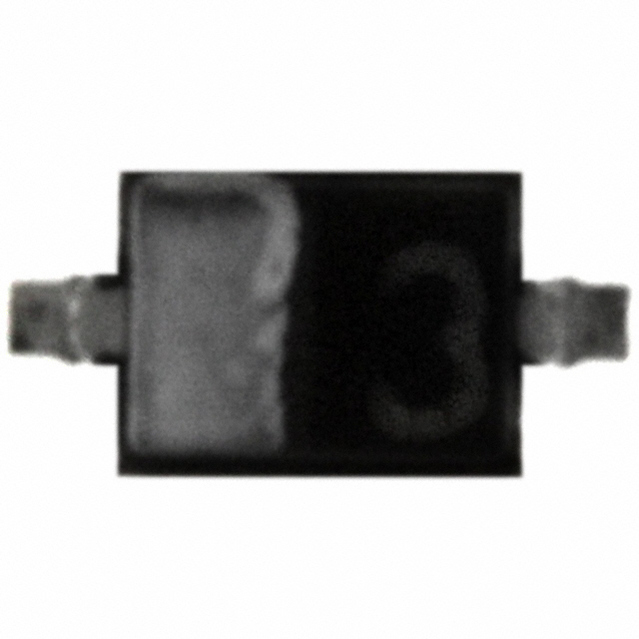

Image is for your reference only,please check specifications for details

BAT 60A E6327 - Infineon
Manufacturer:
Infineon
ManyChip's Part#:
MC91129600
Category:
TVS Diode
Package:
SOD-323
Datasheet:
Datasheet 3D Model
Description:
INFINEON BAT 60A E6327 Small Signal Schottky Diode, Single, 10V, 3A, 370mV, 5A, 85℃
Stock Locations:
Availability:
291 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.13

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The BAT 60A E6327 is a silicon high current rectifier Schottky Diode with extreme low VF drop (typical 0.12V at IF=10mA). Suitable for clamping and protection in low voltage applications and detection and step-up-conversion.
1350mW Total power dissipation
Due to technical requirements, components may contain dangerous substances.

Show

BAT 60A E6327 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package	SOD-323
Number of Positions	2 Position
Forward Voltage	0.37V @1A
Forward Current	3 A
Max Forward Surge Current (Ifsm)	5 A
Maximum Forward Voltage (Max)	370 mV
Forward Current (Max)	3000 mA
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	1350 mW
	Show
Size-Length	1.7 mm
Size-Width	1.25 mm
Size-Height	1.05 mm
Material	Silicon
Operating Temperature	-55℃ ~ 85℃
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
