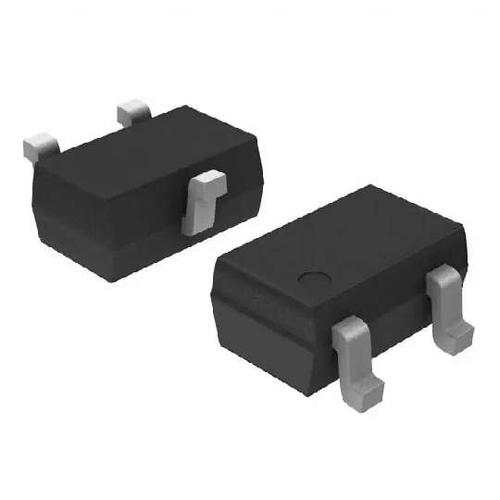

BAV99RWT1G - ON Semiconductor
Manufacturer:
ON Semiconductor
ManyChip's Part#:
MC4107704
Category:
Diode Array, TVS Diode Array
Package:
SC-70-3
Datasheet:
Datasheet 3D Model
Description:
ON SEMICONDUCTOR BAV99RWT1G Small Signal Diode, Dual Series, 100V, 715mA, 1.25V, 6ns, 500mA
Stock Locations:
Availability:
277 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.08

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The switching diode is designed for high speed switching applications. This dual diode device contains two diodes in series encapsulated in a SC-70 surface mount package.
Features
---
|
Pb-Free Packages are Available
S Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AECQ101 Qualified and PPAP Capable

Show

BAV99RWT1G Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	SC-70-3
Voltage Rating (DC)	70.0 V
Current Rating	200 mA
Capacitance	1.50 pF
Halogen Free Status	Halogen Free
Number of Positions	3 Position
Forward Voltage	1.25V @150mA
Power Dissipation	200 mW
Reverse recovery time	6 ns
Forward Current	715 mA
Max Forward Surge Current (Ifsm)	500 mA
Maximum Forward Voltage (Max)	1 V
Forward Current (Max)	0.715 A
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-65 ℃
Power Dissipation (Max)	300 mW
	Show
Size-Length	2.1 mm
Size-Width	1.24 mm
Size-Height	0.85 mm
Operating Temperature	-65℃ ~ 150℃
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
