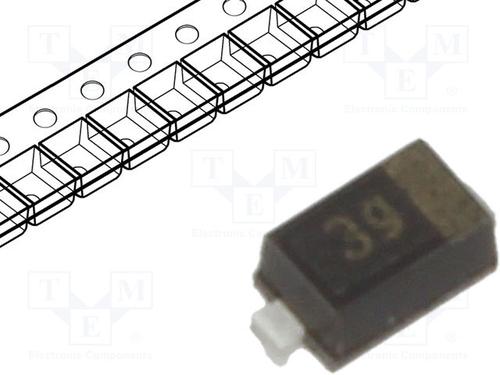

Image is for your reference only,please check specifications for details

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

BAS7002VH6327XTSA1 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package	SOD-523-2
Load Current	0.07 A
Number of Positions	2 Position
Forward Voltage	1V @15mA
Power Dissipation	250 mW
Reverse recovery time	100 ps
Forward Current	70 mA
Max Forward Surge Current (Ifsm)	100 mA
Maximum Forward Voltage (Max)	1 V
Forward Current (Max)	70 mA
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-55 ℃
Junction Temperature	150 ℃
Power Dissipation (Max)	250 mW
	Show
Size-Length	1.2 mm
Size-Width	0.8 mm
Size-Height	0.55 mm
Operating Temperature	-55℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status
