Attribute | Attribute Value |
---|---|
Datasheet | Datasheet |
3D Model | 3D Model |
Mounting Style | Through Hole |
Number of Pins | 2 Pin |

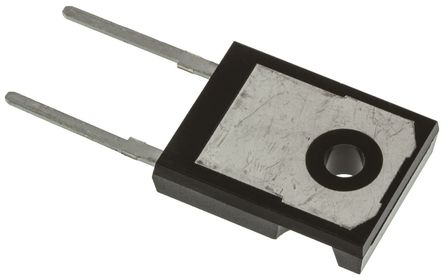

Case/Package | TO-247-2 |
Voltage Rating (DC) | 1.20 kV |
Current Rating | 75.0 A |
Output Current | ≤75.0 A |
Forward Voltage | 3.2V @75A |
Polarity | Standard |
Thermal Resistance | 0.8℃/W (RθJC) |
Reverse recovery time | 100 ns |
Forward Current | 75 A |
Max Forward Surge Current (Ifsm) | 500 A |
Maximum Forward Voltage (Max) | 3.2 V |
Forward Current (Max) | 75 A |
Operating Temperature (Max) | 175 ℃ |
Operating Temperature (Min) | -65 ℃ |
Junction Temperature (Max) | 175 ℃ |
Show | |
Size-Length | 15.8 mm |
Size-Width | 4.82 mm |
Size-Height | 20.8 mm |
Operating Temperature | -65℃ ~ 175℃ |
Product Lifecycle Status | Active |
Packaging | Tube |
RoHS | RoHS Compliant |
Lead-Free Status | Lead Free |
REACH SVHC Compliance | No SVHC |
REACH SVHC Compliance Edition | 2015/06/15 |
ECCN Code | EAR99 |
