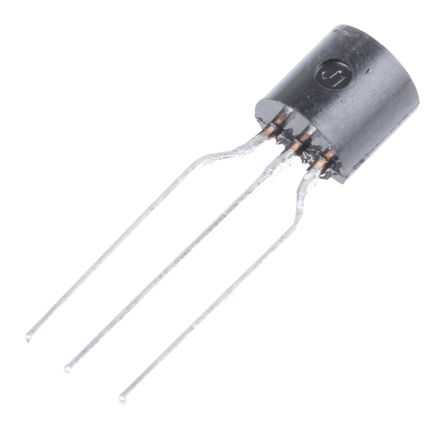

Image is for your reference only,please check specifications for details

BC560CTA - Fairchild
Manufacturer:
Fairchild
ManyChip's Part#:
MC12658048
Category:
BJT Transistor, BJT
Package:
TO-226-3
Datasheet:
Datasheet 3D Model
Description:
FAIRCHILD SEMICONDUCTOR BC560CTA Bipolar (BJT) Single Transistor, PNP, -45V, 150MHz, 0.5W(1/2W), -100mA, 420
Stock Locations:
Availability:
9,977 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.24

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The BC560CTA is a PNP epitaxial silicon Bipolar Transistor suitable for switching and amplifier applications.
Low noise
Complement to BC550

Show

BC560CTA Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-226-3
Frequency	150 MHz
Power Rating	500 mW
Number of Positions	3 Position
Polarity	PNP
Power Dissipation	500 mW
Breakdown Voltage (Collector to Emitter)	45 V
Continuous Collector Current	0.1A
hFE Min	420 @2mA, 5V
Input Power (Max)	500 mW
DC Current Gain (hFE)	420
Operating Temperature (Max)	150 ℃
Power Dissipation (Max)	500 mW
	Show
Size-Length	5.2 mm
Size-Width	4.19 mm
Size-Height	5.33 mm
Operating Temperature	150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Ammo Pack
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
