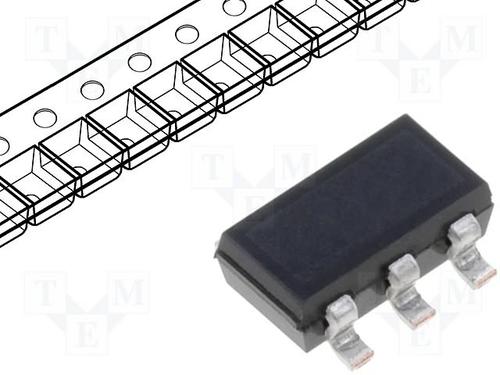

Image is for your reference only,please check specifications for details
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Summary of Features:
- Supports PWM dimming
- LED drive current preset to 10mA
- Continuous driving current up to 65mA
- High side current control
- Supply voltage up to 40V
- Up to 750mW power dissipation in small SC74 pkg
- Automotive qualified according to AEC Q101
- Benefits:
- Dimmable
- Adjustable output current
- Negative thermal coefficient for over temperature protection
- Low voltage overhead of 1.4V
BCR401U Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 6 Pin |
| Case/Package | SC-74 |
| Operating Voltage | 1.4V ~ 40V |
| Number of Outputs | 1 Output |
| Input Voltage (DC) | 1.40V ~ 40.0V |
| Output Voltage | 8.60 V |
| Output Current | 60 mA |
| Number of Channels | 1 Channel |
| Power Dissipation | 500 mW |
| Operating Temperature (Max) | 150 ℃ |
| Power Dissipation (Max) | 500 mW |
| Show | |
| Operating Temperature | -65℃ ~ 150℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| ECCN Code | EAR99 |
