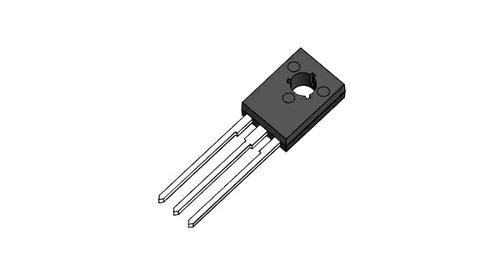

Image is for your reference only,please check specifications for details

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Implement this versatile PNP BD136G GP BJT from ON Semiconductor into an electronic circuit to be used as a current or voltage-controlled switch or amplifier. This bipolar junction transistor"s maximum emitter base voltage is 5 V. Its maximum power dissipation is 1250 mW. This bipolar junction transistor has an operating temperature range of -55 °C to 150 °C. It has a maximum collector emitter voltage of 45 V and a maximum emitter base voltage of 5 V.

Show

BD136G Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-126-3
Voltage Rating (DC)	-45.0 V
Current Rating	-1.50 A
Number of Positions	3 Position
Polarity	PNP, P-Channel
Power Dissipation	1.25 W
Breakdown Voltage (Collector to Emitter)	45 V
Thermal Resistance	10℃/W (RθJC)
Continuous Collector Current	1.5A
hFE Min	40 @150mA, 2V
Input Power (Max)	1.25 W
DC Current Gain (hFE)	25
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	1250 mW
	Show
Size-Length	7.8 mm
Size-Width	2.66 mm
Size-Height	11.04 mm
Material	Silicon
Operating Temperature	-55℃ ~ 150℃
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
