BFU520YX NXP - BJT Transistor, BJT - ManyChip Electronics

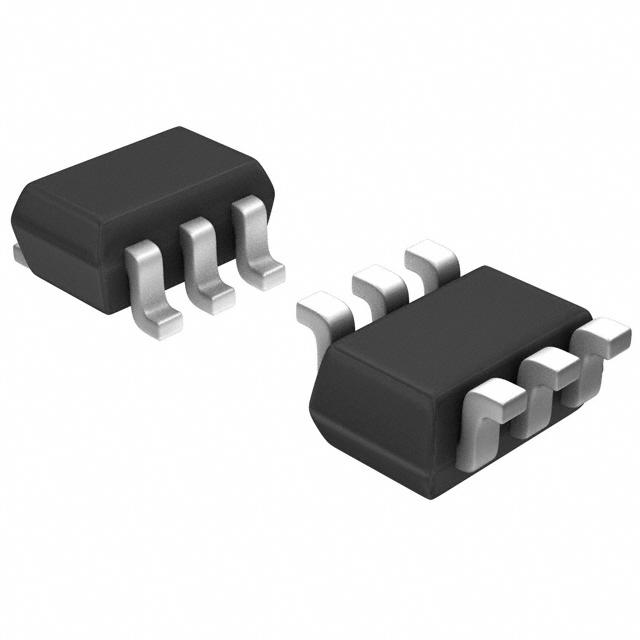

Image is for your reference only,please check specifications for details

BFU520YX - NXP
Manufacturer:
NXP
ManyChip's Part#:
MC5294630
Category:
BJT Transistor, BJT
Package:
SC-70-6
Datasheet:
Datasheet 3D Model
Description:
Транзистор ВЧ биполярный NPN 16 В 0.05 А 450 мВт, автомобильный, 6-контактный TSSOP, лента и катушка
Stock Locations:
Availability:
4,060 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.33

Updated at 16/09/2026 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Ваша схема будет работать на более высоких радиочастотах с этим ВЧ-усилителем BFU520YX от NXP Semiconductors. Этот ВЧ-транзистор имеет рабочий диапазон температур от -40 °C до 150 °C.

Show

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	6 Pin
Case/Package	SC-70-6
Number of Positions	6 Position
Power Dissipation	450 mW
Input Capacitance	0.64 pF
Breakdown Voltage (Collector to Emitter)	12 V
Gain	19 dB
hFE Min	60 @5mA, 8V
Rating Power (Max)	450 mW
DC Current Gain (hFE)	60
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	450 mW
	Show
Material	Silicon
Operating Temperature	-40℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ECCN Code	EAR99
