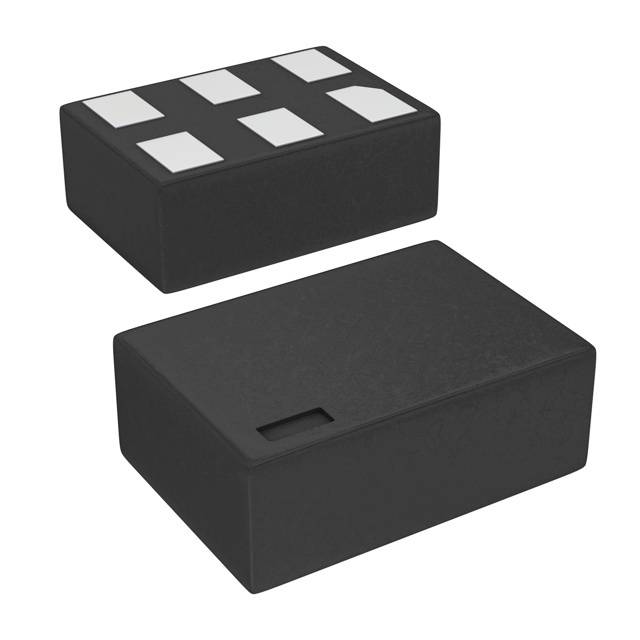

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Description:
The BGA725L6 is a front-end low noise amplifier for Global Navigation Satellite Systems (GNSS) from 1550 MHz to 1615 MHz like GPS, GLONASS, Beidou, Galileo and others. The LNA provides 20.0 dB gain and 0.65 dB noise figure at a current consumption of 3.6 mA in the application configuration described. The BGA725L6 is based upon Infineon Technologies‘ B7HF Silicon Germanium technology. It operates from 1.5 V to 3.6 V supply voltage.
Summary of Features:
High insertion power gain: 20.0 dB
Out-of-band input 3rd order intercept point: -2 dBm
Input 1 dB compression point: -15 dBm
Low noise figure: 0.65 dB
Low current consumption: 3.6 mA
Operating frequencies: 1550 - 1615 MHz
Supply voltage: 1.5 V to 3.6 V
Digital on/off switch (1V logic high level)
Ultra small TSLP-6-2 leadless package (footprint: 0.7 x 1.1 mm2)
B7HF Silicon Germanium technology
RF output internally matched to 50 Ω
Only 1 external SMD component necessary
2kV HBM ESD protection (including AI-pin)
Pb-free (RoHS compliant) package

Show

BGA725L6E6327FTSA1 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	6 Pin
Case/Package	TSLP-6-2
Frequency	1.55GHz ~ 1.615GHz
Supply Voltage (DC)	1.50V (min)
Supply Current	3.6 mA
Number of Channels	1 Channel
Number of Positions	6 Position
Power Dissipation	72 mW
Gain	20 dB
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	72 mW
Supply Voltage	1.5V ~ 3.6V
Supply Voltage (Max)	3.6 V
Supply Voltage (Min)	1.5 V
	Show
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
