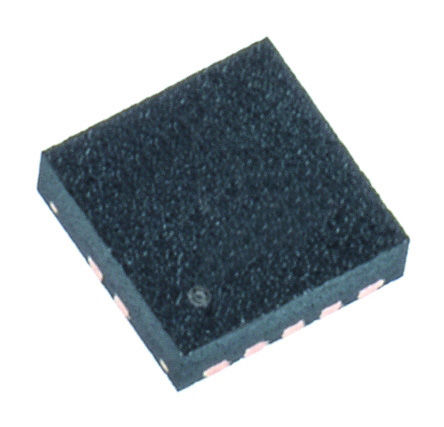

BQ24040DSQT - TI
Manufacturer:
TI
ManyChip's Part#:
MC596444
Category:
Battery Management IC
Package:
WFDFN-10
Datasheet:
Datasheet 3D Model
Description:
Battery Charge Management 800mA, Single-Input, Single Cell Li-Ion Battery Charger with Auto Start. Vovp=6.6V Battery Charger Li-Ion 800mA 4.2V 10Pin WSON EP T/R
Stock Locations:
Availability:
324 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 2.13

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The BQ24040DSQT is a highly integrated Li-ion and Li-polymer Linear Charger targeted at space-limited portable applications. The device operates from either an USB port or AC adapter. The high input voltage range with input overvoltage protection supports low-cost unregulated adapters. The bq2404x has a single power output that charges the battery. A system load can be placed in parallel with the battery as long as the average system load does not keep the battery from charging fully during the 10 hour safety timer. The battery is charged in three phases: conditioning, constant current and constant voltage. In all charge phases, an internal control loop monitors the IC junction temperature and reduces the charge current if an internal temperature threshold is exceeded. The charger power stage and charge current sense functions are fully integrated. The charger function has high accuracy current and voltage regulation loops, charge status display and charge termination.
1% Charge voltage accuracy
10% Charge current accuracy
Input voltage dynamic power management
OUT short-circuit protection and ISET short detection
Status indication - Charging/done
Green product and no Sb/Br
Device has limited built-in ESD protection, leads should be shorted together or the device placed in conductive foam during storage or handling to prevent electrostatic damage to the MOS gates.

Show

BQ24040DSQT Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	10 Pin
Case/Package	WFDFN-10
Input Voltage (DC)	6.45 V
Output Voltage	4.2 V
Output Current	800 mA
Number of Positions	10 Position
Power Dissipation	1660 mW
Output Voltage (Max)	4.4 V
Output Voltage (Min)	4.3 V
Output Current (Max)	1 A
Output Current (Min)	10 mA
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	1660 mW
Supply Voltage	3.5 V
Supply Voltage (Max)	28 V
Input Voltage	6.45 V
	Show
Size-Length	2.1 mm
Size-Width	2.1 mm
Size-Height	0.75 mm
Operating Temperature	0℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
