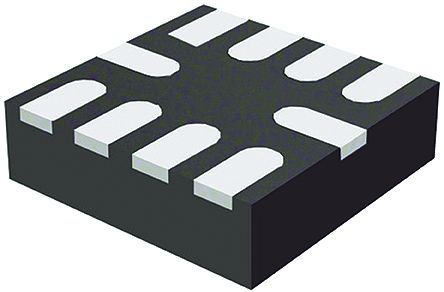

Image is for your reference only,please check specifications for details

BQ24392RSER - TI
Manufacturer:
TI
ManyChip's Part#:
MC15084053
Category:
Battery Management IC
Package:
USP-6C
Datasheet:
Datasheet 3D Model
Description:
SPST USB 2.0 High-Speed Switch With Battery Charging Detection 10-UQFN -40℃ to 85℃
Stock Locations:
Availability:
1,593 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.66

Updated at 03/12/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The BQ24392RSER is a SPST USB 2.0 High-speed Switch with battery charging detection for use with micro and mini-USB ports. This USB switch allows mobile phones, tablets and other battery operated electronics to be charged from different adapters with minimal system software. The device"s charger detection circuitry can support USB Battery Charging Specification version 1.2 (BCv1.2) compliant, Apple™, TomTom™ and other non-standard chargers. The BQ24932 device is powered through VBUS when a charger is attached to the micro or mini-USB port and has a 28V tolerance to avoid the need for external protection.
USB 2.0 high speed switch
Dedicated charging port
Standard downstream port
Charging downstream port
Green product and no Sb/Br
This device has limited built-in ESD protection, leads should be shorted together or the device placed in conductive foam during storage or handling to prevent electrostatic damage to the MOS gates.

Show

BQ24392RSER Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	10 Pin
Case/Package	USP-6C
Input Voltage (DC)	5.25 V
Number of Channels	1 Channel
Number of Positions	10 Position
Bandwidth	920 MHz
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Input Voltage	5.25 V
	Show
Size-Length	2.05 mm
Size-Width	1.55 mm
Size-Height	0.55 mm
Operating Temperature	-40℃ ~ 85℃ (TA)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
