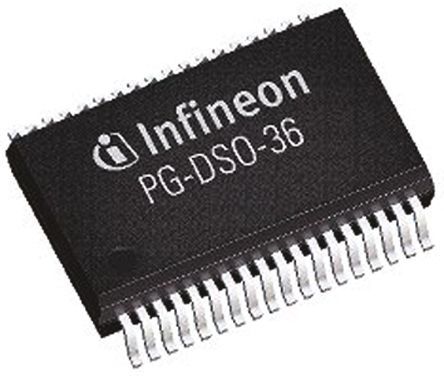

Image is for your reference only,please check specifications for details

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The BTM7752G is a fully integrated high current H-bridge Driver contains two p-channel high-side MOSFETs and two n-channel low-side MOSFETs with an integrated driver IC. Due to the p-channel high-side switches need for a charge pump is eliminated thus minimizing EMI. Interfacing to a microcontroller is made easy by the integrated driver IC. The driver provides an optimized solution for protected high current PWM motor drives with very low board space consumption. The switch-mode current limitation used for reduced power dissipation in over-current situation.
Driver circuit with logic inputs
Status flag diagnosis with current sense capability
Over-temperature shut down with latch behaviour
Overvoltage lock out
Under-voltage shut down
Integrated dead time generation
ESD sensitive device, take proper precaution while handling the device.

Show

BTM7752G Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	36 Pin
Case/Package	PG-DSO-36
Supply Voltage (DC)	5.00V (min)
Number of Outputs	1 Output
Output Current	12 A
Number of Positions	36 Position
Switching Frequency	25 kHz
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	5.5V ~ 28V
Supply Voltage (Max)	28 V
Supply Voltage (Min)	5 V
	Show
Size-Length	12.8 mm
Size-Width	7.6 mm
Size-Height	2.45 mm
Operating Temperature	-40℃ ~ 150℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
