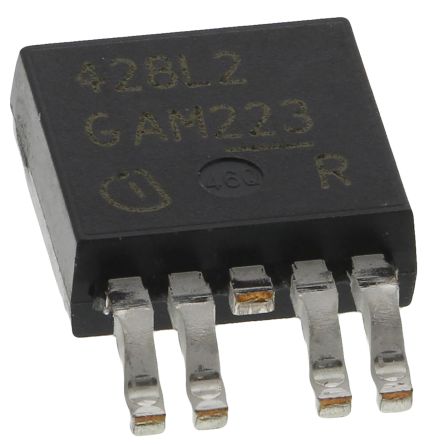

Image is for your reference only,please check specifications for details

BTS428L2ATMA1 - Infineon
Manufacturer:
Infineon
ManyChip's Part#:
MC22468982
Category:
Power Distribution
Package:
TO-252-5
Datasheet:
Datasheet 3D Model
Description:
Power Switch Hi Side 1Out 5.8A 0.05Ω Automotive 5Pin(4+Tab) TO-252 T/R
Stock Locations:
Availability:
233 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 2.01

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The BTS428L2 is a 1-channel high-side vertical power MOSFET Switch with charge pump, ground referenced CMOS compatible input and diagnostic feedback, monolithically integrated in smart SIPMOS® technology. It provides embedded protection, diagnostic functions and fast demagnetization of inductive loads.
Very low standby current
Improved electromagnetic compatibility (EMC)
Stable behaviour at under-voltage
Wide operating voltage range
Logic ground independent from load ground
High voltage capability
Benchmark energy robustness
ESD sensitive device, take proper precaution while handling the device.

Show

BTS428L2ATMA1 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	5 Pin
Case/Package	TO-252-5
Number of Outputs	1 Output
Output Current	5.8 A
Supply Current	0.8 mA
Number of Positions	5 Position
Power Dissipation	75 W
Input Voltage (Max)	16 V
Output Current (Min)	5.8 A
Number of Inputs	1 Input
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	75000 mW
Supply Voltage (Max)	41 V
Supply Voltage (Min)	4.75 V
Input Voltage	16 V
	Show
Size-Length	6.5 mm
Size-Width	6.22 mm
Size-Height	2.3 mm
Operating Temperature	-40℃ ~ 150℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
