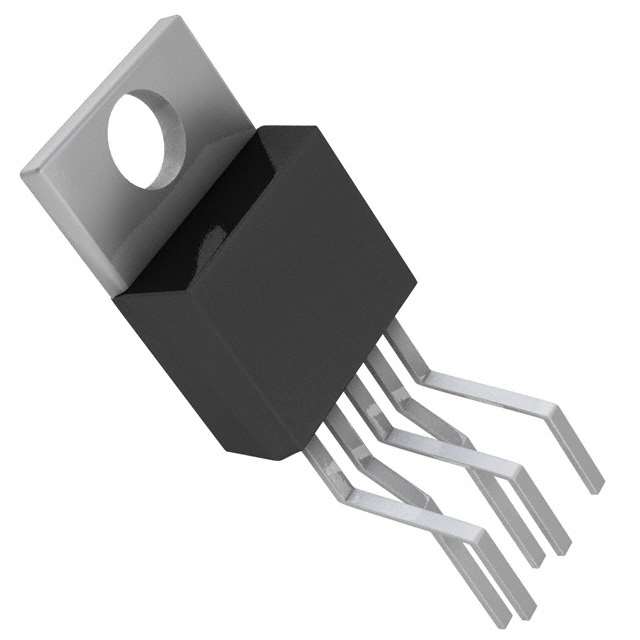

Image is for your reference only,please check specifications for details

BTS442E2 - Infineon
Manufacturer:
Infineon
ManyChip's Part#:
MC5662469
Category:
FET Driver
Package:
TO-220-5
Datasheet:
Datasheet 3D Model
Description:
Buffer/Inverter Based Peripheral Driver, 1 Driver, 70A, MOS, PZFM5, PLASTIC, TO-220AB, 5Pin
Stock Locations:
Availability:
341 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 10.61

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The BTS442E2 is a 1-output N-channel high-side vertical Power FET Switch with charge pump, ground referenced CMOS compatible input and diagnostic feedback and integrated in smart SIPMOS® technology. It provides embedded protective functions, under-voltage and overvoltage shutdown with auto-restart and hysteresis.
Overload protection
Current limitation
Short-circuit protection
Thermal shutdown
Overvoltage protection
Fast demagnetization of inductive loads
Reverse battery protection
Open drain diagnostic output
Open load detection in ON-state
CMOS compatible input
Loss of ground and loss of VBB protection
Electrostatic discharge (ESD) protection
High load current capability
High inrush current capability
Very high energy capability
Capable for 24V applications
Integrated protection functionality
ESD sensitive device, take proper precaution while handling the device.

Show

BTS442E2 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	5 Pin
Case/Package	TO-220-5
Supply Voltage (DC)	42.0V (max)
Number of Outputs	1 Output
Input Voltage (DC)	6.00 V
Output Voltage	63 V
Output Current	21 A
Supply Current	1.1 mA
Number of Channels	1 Channel
Number of Positions	5 Position
Power Dissipation	167 W
Output Current (Max)	17 A
Output Current (Min)	17 A
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	167000 mW
Supply Voltage	4.5V ~ 42V
Input Voltage	6 V
	Show
Size-Length	15.6 mm
Size-Width	9.90 mm
Size-Thickness	4.40 mm
Operating Temperature	-40℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
