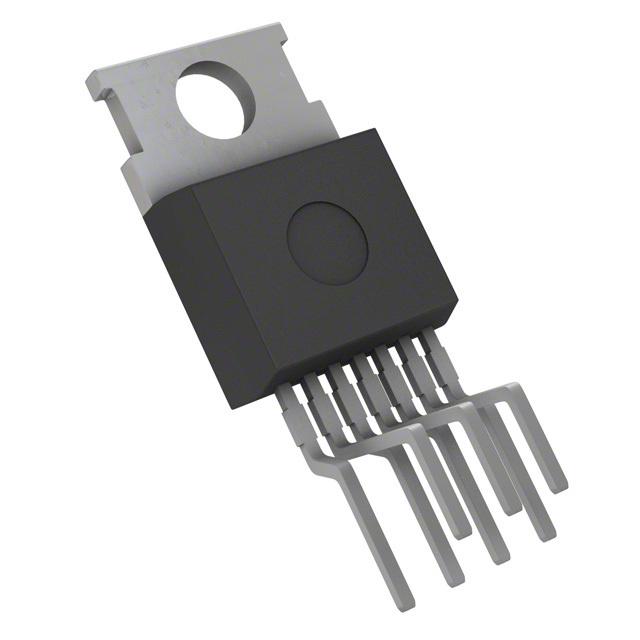

Image is for your reference only,please check specifications for details
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Power Switch/Driver 1:1 N-Channel 3.5A P-TO220-7-3
BTS621L1 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 7 Pin |
| Case/Package | TO-220-7 |
| Supply Voltage (DC) | 34.0V (max) |
| Number of Outputs | 2 Output |
| Supply Current | 4 mA |
| Number of Channels | 2 Channel |
| Power Dissipation | 75000 mW |
| Output Current (Max) | 3.5 A |
| Output Current (Min) | 3.5 A |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Power Dissipation (Max) | 75000 mW |
| Show | |
| Size-Length | 15.6 mm |
| Size-Width | 9.90 mm |
| Size-Height | 9.2 mm |
| Size-Thickness | 4.40 mm |
| Operating Temperature | -40℃ ~ 150℃ (TJ) |
| Product Lifecycle Status | Obsolete |
| Packaging | Tube |
| RoHS | Non-Compliant |
| Lead-Free Status | Contains Lead |
