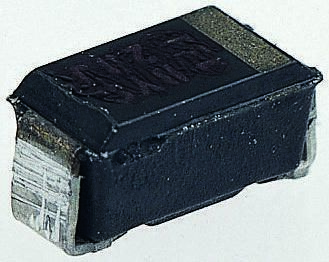

Image is for your reference only,please check specifications for details
- BZG03C200TR - VISHAY
-
Manufacturer:VISHAY
-
ManyChip's Part#:MC60537282
-
Category:Zener Diode, Zener
-
Package:DO-214AC
-
Datasheet:Datasheet 3D Model
-
Description:BZG03C Series 3W 200V 5% Tolerance Surface Mount Zener Diode - DO-214AC
-
Stock Locations:
-
Availability:279 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0.47
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Silicon Z–Diodes Glass passivated junction High reliability Wave and reflow solderable Voltage stabilization
BZG03C200TR Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 2 Pin |
| Case/Package | DO-214AC |
| Capacitance Tolerance | ±6 % |
| Breakdown Voltage | 188 V |
| Number of Positions | 2 Position |
| Forward Voltage | 1.2V @500mA |
| Power Dissipation | 3 W |
| Test Current | 5 mA |
| Zener Voltage | 200 V |
| Maximum Forward Voltage (Max) | 1.2V @500mA |
| Input Power (Max) | 1.25 W |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | -65 ℃ |
| Power Dissipation (Max) | 3000 mW |
| Show | |
| Size-Length | 4.5 mm |
| Size-Width | 2.8 mm |
| Size-Height | 2.2 mm |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| Minimum Packing Quantity | 1500 |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
