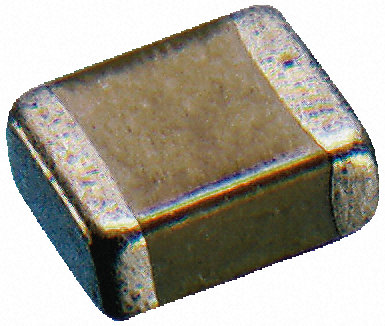

Image is for your reference only,please check specifications for details

C1812C105K5RACTU - KEMET Corporation
Manufacturer:
KEMET Corporation
ManyChip's Part#:
MC11240833
Category:
Ceramic Capacitor
Package:
1812
Datasheet:
Datasheet 3D Model
Description:
KEMET C1812C105K5RACTU SMD Multilayer Ceramic Capacitor, 1812 [4532 Metric], 1μF, 50V, ± 10%, X7R, C Series
Stock Locations:
Availability:
0 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The Kemet C series commercial grade multilayer ceramic chip capacitors is Class 2, X7R dielectric material which exhibits no change in capacitance with respect to time and voltage. There will be negligible change in capacitance with reference to ambient temperature. Standard end terminations use a nickel barrier layer and a matte tin finish to provide excellent soldering ability for customers. Typical applications include decoupling, bypass, filtering and transient voltage suppression. MLCCs are monolithic devices that consist of laminated layers of specially formulated, ceramic dielectric materials interspersed with a metal electrode system. The layered formation is then fired at high temperature to produce a sintered and volumetrically efficient capacitance device. A conductive termination barrier system is integrated on the exposed ends of the chip to complete the connection.
Capacitance range includes E24 decade values from 10pF to 47µF
EIA 0402, 0603, 0805, 1206, 1210, 1808, 1812, 1825, 2220 and 2225 case sizes available
DC voltage rating of 6.3V to 250V
High temperature range of -55°C to 125°C
Temperature stable dielectric
Capacitance tolerances of ±5%, ±10% and ±20%
Non polarity device, minimize installation concerns

Show

C1812C105K5RACTU Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package (SI)	4532
Case/Package	1812
Voltage Rating (DC)	50 V
Operating Voltage	50 V
Insulation Resistance	1 GΩ
Capacitance	1 µF
Capacitance Tolerance	±10 %
Dielectric Characteristic	X7R
Current Rating (Max)	400 mA
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-55 ℃
Voltage Rating	50 V
Resistance (DC Max)	280 mΩ
	Show
Size-Length	4.5 mm
Size-Width	3.2 mm
Size-Height	1.3 mm
Dielectric Material	Ceramic
Operating Temperature	-55℃ ~ 125℃
Temperature Coefficient	±15 %
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	R
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
