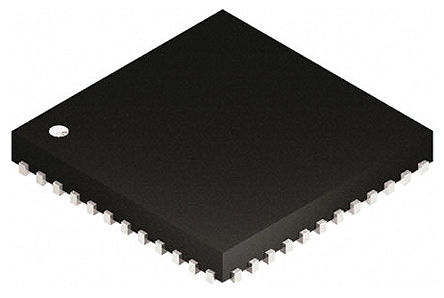

Image is for your reference only,please check specifications for details
- CC2650F128RGZT - TI
-
Manufacturer:TI
-
ManyChip's Part#:MC14272100
-
Category:Microcontroller, MCU IC
-
Package:VQFN-48
-
Datasheet:Datasheet 3D Model
-
Description:MCU-Application Specific 32Bit, 48MHz, 20KB RAM/128KB Program, 1.8V to 3.8V in, VQFN-48
-
Stock Locations:
-
Availability:303 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 6.68
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The CC2650F128RGZT is a SimpleLink multi-standard 2.4 GHz ultra-low power Wireless Microcontroller. The device contains a 32-bit ARM Cortex-M3 processor that runs at 48MHz as the main processor and a rich peripheral feature set that includes an unique ultralow power sensor controller. This sensor controller is ideal for interfacing external sensors and for collecting analog and digital data autonomously while the rest of the system is in sleep mode. The Bluetooth Low Energy controller and the IEEE 802.15.4 MAC are embedded into ROM and runs partly on an ARM Cortex-M0 processor. This architecture improves overall system performance and power consumption and frees up flash memory for the application.
- EEMBC CoreMark® Score - 142
- Ultralow power sensor controller
- Efficient code size architecture, placing drivers, BLE controller, IEEE 802.15.4 MAC
- All digital peripheral pins can be routed to any GPIO
- Four general-purpose timer modules
- 12-bit 200ksps ADC
- Continuous time comparator
- Ultralow power clocked comparator
- Programmable current source
- Real-time clock (RTC)
- AES-128 Security module
- True random number generator (TRNG)
- Support for eight capacitive sensing buttons
- Integrated temperature sensor
- On-chip internal DC to DC converter
- Very few external components
- Seamless integration with the simpleLink CC2590 and CC2592 range extenders
- 2.4GHz RF transceiver compatible with BLE 4.1 specification and IEEE 802.15.4 PHY and MAC
- Excellent receiver sensitivity (-97dBm for BLE), selectivity and blocking performance
- Link budget of 102dB for BLE
CC2650F128RGZT Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 48 Pin |
| Case/Package | VQFN-48 |
| Frequency | 2.4 GHz |
| Number of Positions | 48 Position |
| Clock Speed | 48.0 MHz |
| RAM Memory Size | 20 KB |
| FLASH Memory Size | 131072 B |
| Output Power | 5 dBm |
| Number of UARTs | 1 UART |
| Number of ADCs | 1 ADC |
| Number of Inputs and Outputs | 31 Input IO |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Supply Voltage | 1.8V ~ 3.8V |
| Supply Voltage (Max) | 3.8 V |
| Supply Voltage (Min) | 1.8 V |
| Show | |
| Size-Length | 7.15 mm |
| Size-Width | 7.15 mm |
| Size-Height | 0.95 mm |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
