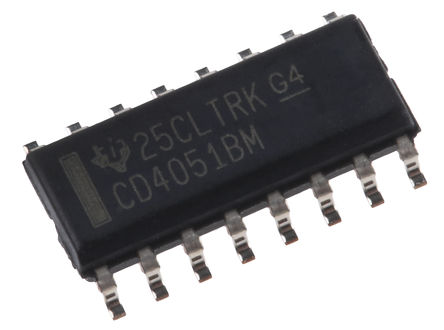

Image is for your reference only,please check specifications for details
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The CD4051BM96 is a CMOS single 8-channel Analogue Multiplexer/Demultiplexer with logic-level conversion, digitally-controlled analogue switches having low ON impedance and very low OFF leakage current. These multiplexer circuits dissipate extremely low quiescent power over the full VDD - VSS and VDD - VEE supply-voltage ranges, independent of the logic state of the control signals.
- 3 to 20V Digital,
- Low ON resistance, 125R (typical) over 15 VP-P signal input range for VDD - VEE = 18V
- High OFF resistance, channel leakage of ±100pA (typical) at VDD - VEE = 18V
- Logic-level conversion for digital addressing signals of 3 to 20V (VDD - VSS = 3 to 20V)
- Binary address decoding on chip
- 5, 10 and 15V Parametric ratings
- 100% Tested for quiescent current at 20V
- Maximum input current of 1µA at 18V over full package-temperature range, 100nA at 18V and 25°C
- Break-before-make switching eliminates channel overlap
- Green product and no Sb/Br
- Device has limited built-in ESD protection. The leads should be shorted together or the device placed in conductive foam during storage or handling to prevent electrostatic damage to the MOS gates.
CD4051BM96 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 16 Pin |
| Case/Package | SOIC-16 |
| Supply Voltage (DC) | 3.00V (min) |
| Operating Voltage | 3V ~ 20V |
| Number of Outputs | 1 Output |
| Supply Current | 100 µA |
| Number of Circuits | 1 Circuit |
| Number of Channels | 8 Channel |
| Number of Positions | 16 Position |
| Number of Bits | 8 Bit |
| Propagation Delay Max (tpd) | 20.0 ns |
| Polarity | Non-Inverting |
| Voltage Nodes | 5.00 V, 10.0 V, 15.0 V |
| Quiescent Current | 80.0 nA |
| Bandwidth | 20 Mhz |
| Number of Inputs | 8 Input |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| 3dB Bandwidth | 20 MHz |
| Supply Voltage | 3.20 VDC |
| Supply Voltage (Max) | 20 V |
| Supply Voltage (Min) | 3 V |
| Show | |
| Size-Length | 9.9 mm |
| Size-Width | 3.91 mm |
| Size-Height | 1.58 mm |
| Operating Temperature | -55℃ ~ 125℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| ECCN Code | EAR99 |
| HK STC License | NLR |
