Summary of Features:
30% lower E off compared to previous generation
Short circuit withstand time – 10μs
Designed for operation above 30kHz
High ruggedness, temperature stable behaviour
Pb-free lead plating; RoHS compliant
Qualified according to JEDEC for target applications
Target Applications:
Infineon offers a comprehensive IGBT portfolio for the general purpose inverters, solar inverters, UPS, induction heating, microwave oven, rice cookers, welding and SMPS segments.

Show

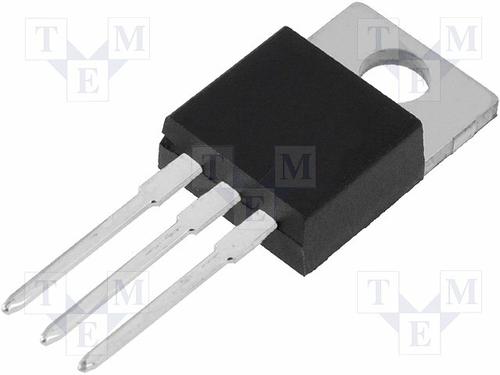

SGP15N120 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-220-3
Power Rating	198 W
Breakdown Voltage (Collector to Emitter)	1200 V
Input Power (Max)	198 W
	Show
Size-Length	10 mm
Size-Width	4.4 mm
Size-Height	9.25 mm
Operating Temperature	-55℃ ~ 150℃
Product Lifecycle Status	Not Recommended for New Design
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ECCN Code	EAR99
