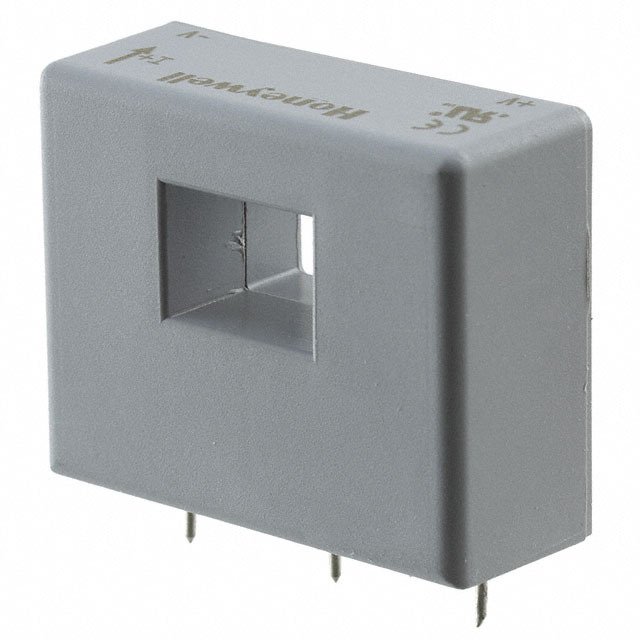

CSNF161 - Honeywell
Manufacturer:
Honeywell
ManyChip's Part#:
MC21100800
Category:
Current Sensor
Package:
Module, Single Pass Through
Datasheet:
Datasheet 3D Model
Description:
HONEYWELL CSNF161 Current Sensor, CSN Series, Solid State, -150A to 150A, Closed Loop Output, 12VDC to 15VDC
Stock Locations:
Availability:
237 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 9.62

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The CSN series closed loop Current Sensor that is based on the principles of the magneto-resistive or hall effects and the null balance or zero magnetic flux method (feedback system). The magnetic flux in the sensor core is constantly controlled at zero. The amount of current required to balance zero flux is the measure of the primary current flowing through the conductor, multiplied by the ratio of the primary to secondary windings. This closed loop current is the output from the device and presents an image of the primary current reduced by the number of secondary turns at any time. This current can be expressed as a voltage by passing it through a resistor.
Up to 1275A current sensing
Measures AC, DC and impulse currents
Rapid response
High overload capability
High level of electrical isolation between primary and secondary circuits
Industrial operating temperature range

Show

CSNF161 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	Module, Single Pass Through
Supply Voltage (DC)	12.0V (min)
Current Rating	100 A
Output Current	100 mA
Supply Current	10 mA
Number of Channels	1 Channel
Coil Resistance	30 Ω
Switching Current	100 mA
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	0 ℃
Accuracy	±0.5 %
Supply Voltage	15 VDC
Supply Voltage (Max)	15 VDC
Supply Voltage (Min)	12 VDC
	Show
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2014/06/16
HTS Code	9030330040
ECCN Code	EAR99
