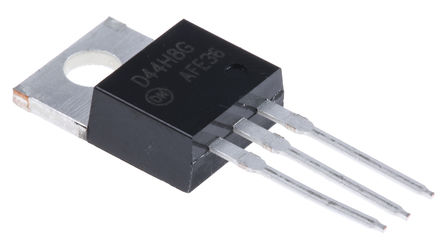

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- **NPN Power Transistors, ON Semiconductor**
- These ON Semiconductor transistors can amplify analog or digital signals. They can also switch DC or function as an oscillator.
D44H8G Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 3 Pin |
| Case/Package | TO-220-3 |
| Frequency | 50 MHz |
| Voltage Rating (DC) | 60.0 V |
| Current Rating | 10.0 A |
| Number of Positions | 3 Position |
| Polarity | NPN |
| Power Dissipation | 2 W |
| Gain Bandwidth Product | 50 MHz |
| Breakdown Voltage (Collector to Emitter) | 60 V |
| Thermal Resistance | 62.5℃/W (RθJC) |
| Continuous Collector Current | 10A |
| hFE Min | 40 @4A, 1V |
| Input Power (Max) | 2 W |
| DC Current Gain (hFE) | 60 |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Power Dissipation (Max) | 2 W |
| Show | |
| Size-Length | 10.28 mm |
| Size-Width | 4.82 mm |
| Size-Height | 9.28 mm |
| Material | Silicon |
| Operating Temperature | -55℃ ~ 150℃ |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| REACH SVHC Compliance Edition | 2017/07/07 |
| ECCN Code | EAR99 |
