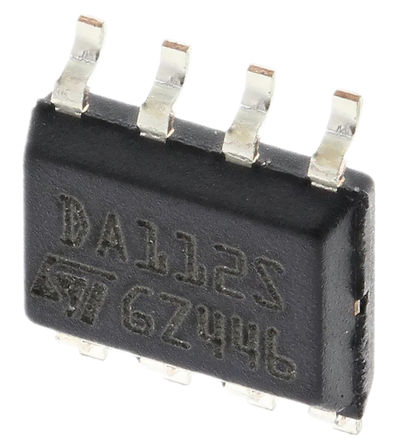

DA112S1 - ST Microelectronics
Manufacturer:
ST Microelectronics
ManyChip's Part#:
MC21389000
Category:
TVS Diode
Package:
SOIC-8
Datasheet:
Datasheet 3D Model
Description:
STMICROELECTRONICS DA112S1 TVS Diode, DA1 Series, Unidirectional, 18V, SOIC, 8Pins
Stock Locations:
Availability:
171 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 1.33

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The DA1 series general purpose ESD Protection Diode Array of 8 or 12 diodes configured by cells of 2 diodes, each cell being used to protect signal line from transient over-voltages by clamping action. As maximum voltage of each diode is 18 V, maximum input voltage range between 2-I/O is either 0 to 18V.
Suitable for digital line protection
Low input capacitance
Protection of logic side of ISDN S-interface

Show

DA112S1 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	SOIC-8
Breakdown Voltage	18.0 V
Number of Positions	8 Position
Forward Voltage	1.20 V
Power Dissipation	730 mW
Maximum Forward Voltage (Max)	12 V
Forward Current (Max)	50 mA
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	730 mW
	Show
Size-Length	5 mm
Size-Width	4 mm
Size-Height	1.25 mm
Operating Temperature	-55℃ ~ 150℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
