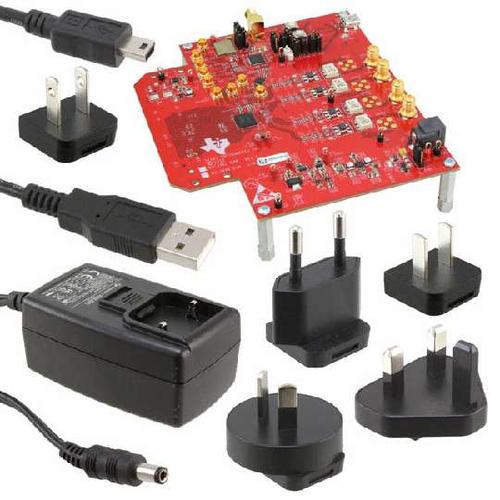

DAC3482EVM - TI
Manufacturer:
TI
ManyChip's Part#:
MC15722623
Category:
Digital to Analog, DAC IC
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS DAC3482EVM Evaluation Module, Digital to Analog Converter, 16Bit, 1.25GSPS, DAC3482
Stock Locations:
Availability:
406 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 602.56

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The DAC3482EVM is an Evaluation Module for evaluate the operation and performance of the DAC3482, a two-channel ultra-low power 16-bit 1.25GSPS digital-to-analogue converter (DAC). The DAC3482 provides 16-bit or 8-bit wide DDR LVDS data input, integrated 2x/4x/8x/16x interpolation filters, 32-bit NCO, PLL and exceptional linearity at high IFs. The board provides a flexible environment to test the DAC3482 under a variety of clock and data input and IF output conditions. For ease of use as a complete IF transmitter solution, the board includes the Texas Instruments CDCE62005 clock generator/jitter cleaner for clocking the DAC3482. Besides providing a high-quality, low jitter DAC sampling clock to the DAC3482, the CDCE62005 also provides FPGA clocks to the TSW1400EVM (or TSW3100EVM) as FPGA reference clocks.
Comprehensive test capability for the DAC3482
Direct connection to TSW1400/TSW3100 signal generator
Includes CDCE62005 for clock generation or jitter cleaning
Software support with a full featured GUI for easy testing and prototyping
FMC-DAC-Adapter card compatible to connect with FMC interconnect headers
Direct compatibility with HSMC headers on Altera based FPGA EVMs
