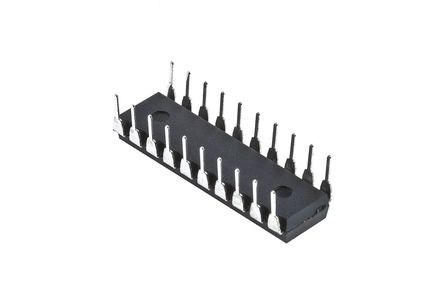

Image is for your reference only,please check specifications for details

ST7FLITE29F2B6 - ST Microelectronics
Manufacturer:
ST Microelectronics
ManyChip's Part#:
MC104022458
Category:
Microcontroller, MCU IC
Package:
DIP-20
Datasheet:
Datasheet 3D Model
Description:
STMICROELECTRONICS ST7FLITE29F2B6 8Bit Microcontroller, ST7LITE2x, 8MHz, 8KB, 384Byte, 20Pins, DIP
Stock Locations:
Availability:
88 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 9.82

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

ST7FLITE29F2B6 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	20 Pin
Case/Package	DIP-20
Frequency	8.00 MHz
Supply Voltage (DC)	5.00 V, 5.50 V (max)
Clock Speed	8 MHz
RAM Memory Size	384 x 8
Number of Bits	8 Bit
FLASH Memory Size	8 KB
Number of I/O Pins	15 IO
Access Time	8.00 µs
Memory Size	8000 B
Number of ADCs	2 ADC
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	500 mW
Supply Voltage	2.4.5.5 VDC
Supply Voltage (Max)	5.5 V
Supply Voltage (Min)	2.4 V
	Show
Size-Length	26.92 mm
Size-Width	7.11 mm
Size-Height	4.95 mm
Operating Temperature	-40℃ ~ 85℃ (TA)
Product Lifecycle Status	Active
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
