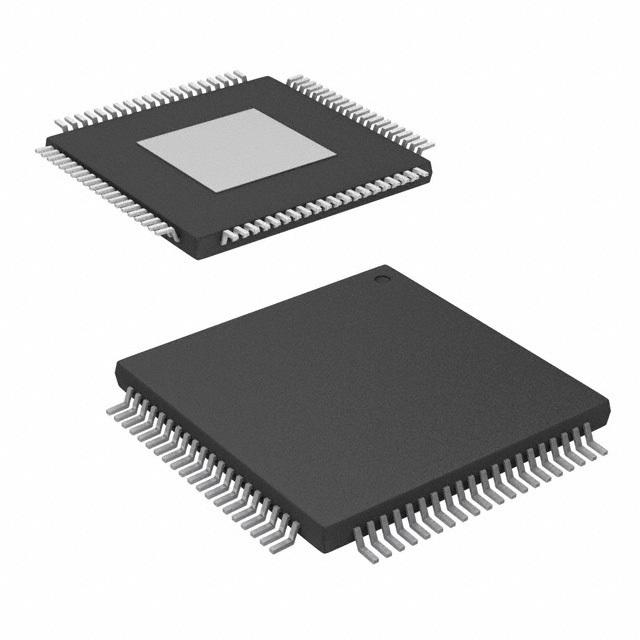

Image is for your reference only,please check specifications for details
- TMS320F28069MPFPQ - TI
-
Manufacturer:TI
-
ManyChip's Part#:MC26476800
-
Category:32-Bit Microcontroller IC
-
Package:TQFP-80
-
Datasheet:Datasheet 3D Model
-
Description:MCU 32Bit Piccolo F2806x C28x RISC 256KB Flash 3.3V 80Pin LQFP
-
Stock Locations:
-
Availability:255 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 54.44
Updated at 02/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- * High-Efficiency 32-Bit CPU (TMS320C28x) * 90 MHz (11.11-ns Cycle Time) * 16 x 16 and 32 x 32 Multiply and Accumulate (MAC) Operations * 16 x 16 Dual MAC * Harvard Bus Architecture * Atomic Operations * Fast Interrupt Response and Processing * Unified Memory Programming Model * Code-Efficient (in C/C++ and Assembly) * Floating-Point Unit(FPU) * Native Single-Precision Floating-Point Operations * Programmable Control Law Accelerator(CLA) * 32-Bit Floating-Point Math Accelerator * Executes Code Independently of the Main CPU * Viterbi, ComplexMath, CRC Unit (VCU) * Extends C28x Instruction Set to Support Complex Multiply, Viterbi Operations, and Cyclic Redundency Check (CRC) * Embedded Memory * Up to 256KB of Flash * Up to 100KB of RAM * 2KB of One-Time Programmable (OTP) ROM * 6-Channel Direct Memory Access(DMA) * Low Device and System Cost * Single 3.3-V Supply * No Power Sequencing Requirement * Integrated Power-on Reset and Brown-out Reset * Low-Power Operating Modes * No Analog Support Pin * Endianness: LittleEndian * JTAG Boundary Scan Support * IEEE Standard 1149.1-1990 Standard Test Access Port and Boundary Scan Architecture * Clocking * Two Internal Zero-Pin Oscillators * On-Chip Crystal Oscillator/External Clock Input * Watchdog Timer Module * Missing Clock Detection Circuitry * Peripheral Interrupt Expansion (PIE) BlockThat Supports All Peripheral Interrupts * Three 32-Bit CPUTimers * Advanced Control Peripherals * Up to 8 EnhancedPulse-Width Modulator (ePWM) Modules * 16 PWM Channels Total (8 HRPWM-Capable) * Independent 16-Bit Timer in Each Module * Three Input Enhanced Capture (eCAP)Modules * Up to 4 High-Resolution Capture (HRCAP) Modules * Upto 2 Enhanced Quadrature Encoder Pulse (eQEP) Modules * 12-Bit Analog-to-DigitalConverter (ADC), Dual Sample-and-Hold (S/H) * Up to 3.46 MSPS * Up to 16 Channels * On-Chip TemperatureSensor * 128-Bit Security Key and Lock * Protects Secure Memory Blocks * Prevents Reverse-Engineering of Firmware * Serial PortPeripherals * Two Serial Communications Interface (SCI) [UART] Modules * Two Serial Peripheral Interface (SPI) Modules * One Inter-Integrated-Circuit (I2C) Bus * One Multichannel Buffered Serial Port (McBSP) Bus * One Enhanced Controller Area Network (eCAN) * Universal Serial Bus (USB) 2.0 (see Device Comparison Table for Availability) * Full-Speed Device Mode * Full-Speed or Low-Speed Host Mode * Up to54 Individually Programmable, Multiplexed General-Purpose Input/Output (GPIO) Pins With InputFiltering * Advanced Emulation Features * Analysis and Breakpoint Functions * Real-Time Debug via Hardware * 2806x Packages * 80-Pin PFP and 100-Pin PZP PowerPAD Thermally Enhanced Thin Quad Flatpacks (HTQFPs) * 80-Pin PN and 100-Pin PZ Low-Profile Quad Flatpacks (LQFPs)
TMS320F28069MPFPQ Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Number of Pins | 80 Pin |
| Case/Package | TQFP-80 |
| Frequency | 90.0 MHz |
| Clock Speed | 90.0 MHz |
| RAM Memory Size | 100 KB |
| FLASH Memory Size | 262144 B |
| Number of UARTs | 2 UART |
| Number of ADCs | 1 ADC |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Show | |
| Operating Temperature | -40℃ ~ 125℃ |
| Product Lifecycle Status | Active |
| Packaging | Tray |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
