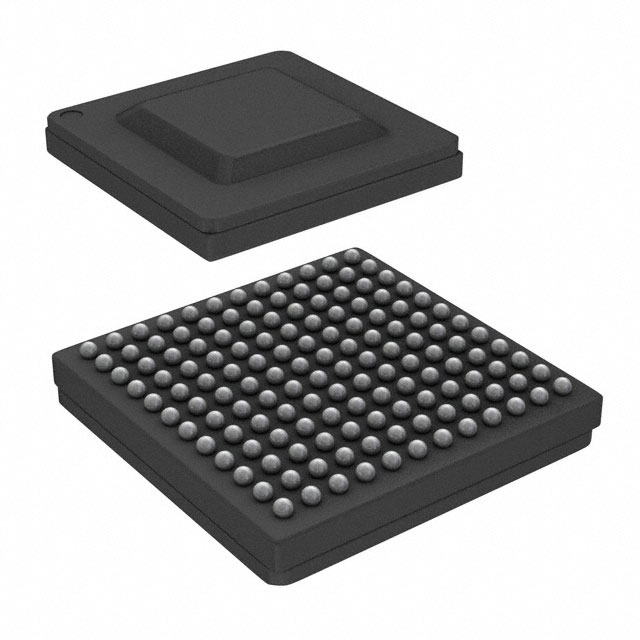

Image is for your reference only,please check specifications for details
- DAC37J82IAAV - TI
-
Manufacturer:TI
-
ManyChip's Part#:MC41625600
-
Category:Digital to Analog, DAC IC
-
Package:FCBGA-144
-
Datasheet:Datasheet 3D Model
-
Description:Dual-Channel, 16Bit, 1.6GSPS, 1x-16x Interpolating Digital-to-Analog Converter (DAC) 144-FCBGA -40℃ to 85℃
-
Stock Locations:
-
Availability:237 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 55.99
Updated at 02/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The pin-compatible DAC37J82/DAC38J82 family is a very low power, 16-bit, dual-channel, 1.6/2.5 GSPS digital to analog converter (DAC) with JESD204B interface. The maximum input data rate is 1.23 GSPS.
- Digital data is input to the device through 1, 2, 4 or 8 configurable serial JESD204B lanes running up to 12.5 Gbps with on-chip termination and programmable equalization. The interface allows JESD204B Subclass 1 SYSREF based deterministic latency and full synchronization of multiple devices.
- The device includes features that simplify the design of complex transmit architectures. Fully bypassable 2x to 16x digital interpolation filters with over 90 dB of stop-band attenuation simplify the data interface and reconstruction filters. An on-chip 48-bit Numerically Controlled Oscillator (NCO) and independent complex mixers allow flexible and accurate carrier placement.
- A high-performance low jitter PLL simplifies clocking of the device without significant impact on the dynamic range. The digital Quadrature Modulator Correction (QMC) and Group Delay Correction (QDC) enable complete IQ compensation for gain, offset, phase, and group delay between channels in direct up-conversion applications. A programmable Power Amplifier (PA) protection mechanism is available to provide PA protection in cases when the abnormal power behavior of the input data is detected.
- DAC37J82/DAC38J82 family provides four analog outputs, and the data from the internal two digital paths can be routed to any two out of these four DAC outputs via the output multiplexer.
DAC37J82IAAV Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 144 Pin |
| Case/Package | FCBGA-144 |
| Number of Outputs | 4 Output |
| Number of Channels | 2 Channel |
| Number of Bits | 16 Bit |
| Sample Rate | 1.60 Hz |
| Power Consumption | 789 mW |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Power Dissipation (Max) | 884 mW |
| Number of DACs | 2 DAC |
| Show | |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tray |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
