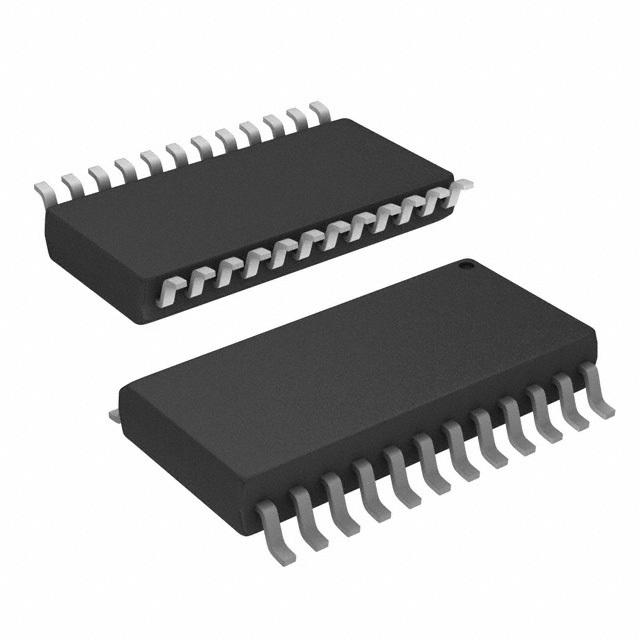

DAC7801KU - TI
Manufacturer:
TI
ManyChip's Part#:
MC44838376
Category:
Digital to Analog, DAC IC
Package:
SOIC-24
Datasheet:
Datasheet 3D Model
Description:
Digital to Analog Converter Dual Monolithic CMOS 12Bit Multiplying Digital-to-Analog Converter DAC 2CH R-2R 12Bit 24Pin SOIC Tube
Stock Locations:
Availability:
246 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 25.69

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

DESCRIPTION
The DAC7800, DAC7801 and DAC7802 are members of a new family of monolithic dual 12-bit CMOS multiplying Digital-to-Analog Converters (DACs). The digital interface speed and the AC multiplying performance are achieved by using an advanced CMOS process optimized for data conversion circuits. High stability on-chip resistors provide true 12-bit integral and differential linearity over the wide industrial temperature range of –40°C to +85°C.
The DAC7800 features a serial interface capable of clocking in data at a rate of at least 10MHz. Serial data is clocked (edge triggered) MSB first into a 24-bit shift register and then latched into each DAC separately or simultaneously as required by the application. An asynchronous CLEAR control is provided for power-on reset or system calibration functions. It is packaged in a 16-pin 0.3" wide plastic DIP.
FEATURES
● TWO DACs IN A 0.3" WIDE PACKAGE
● SINGLE +5V SUPPLY
● HIGH-SPEED DIGITAL INTERFACE:
Serial—DAC7800
8 + 4-Bit Parallel—DAC7801
12-Bit Parallel—DAC7802
● MONOTONIC OVER TEMPERATURE
● LOW CROSSTALK: –94dB min
● FULLY SPECIFIED OVER –40OC TO +85OC
APPLICATIONS
● PROCESS CONTROL OUTPUTS
● ATE PIN ELECTRONICS LEVEL SETTING
● PROGRAMMABLE FILTERS
● PROGRAMMABLE GAIN CIRCUITS
● AUTO-CALIBRATION CIRCUITS
