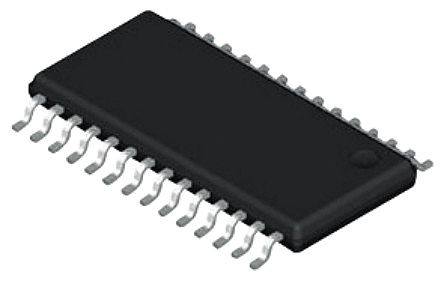

- DAC904E - TI
-
Manufacturer:TI
-
ManyChip's Part#:MC11440966
-
Category:Digital to Analog, DAC IC
-
Package:TSSOP-28
-
Datasheet:Datasheet 3D Model
-
Description:TEXAS INSTRUMENTS DAC904E Digital to Analog Converter, 14Bit, 200MSPS, Parallel, 2.7V to 5.5V, TSSOP, 28Pins
-
Stock Locations:
-
Availability:9,253 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 17.73
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The DAC904 is a high-speed, Digital-to-Analog Converter (DAC) offering a 14-bit resolution option within the family of high-performance converters. Featuring pin compatibility among family members, the DAC908, DAC900, and DAC902 provide a component selection option to an 8-, 10-, and 12-bit resolution, respectively. All models within this family of DACs support update rates in excess of 165MSPS with excellent dynamic performance, and are especially suited to fulfill the demands of a variety of applications.
- The advanced segmentation architecture of the DAC904 is optimized to provide a high Spurious-Free Dynamic Range (SFDR) for single-tone, as well as for multi-tone signals essential when used for the transmit signal path of communication systems.
- The DAC904 has a high impedance (200k) current output with a nominal range of 20mA and an output compliance of up to 1.25V. The differential outputs allow for both a differential or single-ended analog signal interface. The close matching of the current outputs ensures superior dynamic performance in the differential configuration, which can be implemented with a transformer.
- Utilizing a small geometry CMOS process, the monolithic DAC904 can be operated on a wide, single-supply range of +2.7V to +5.5V. Its low power consumption allows for use in portable and battery-operated systems. Further optimization can be realized by lowering the output current with the adjustable full-scale option.
- For noncontinuous operation of the DAC904, a power-down mode results in only 45mW of standby power.
- The DAC904 comes with an integrated 1.24V bandgap reference and edge-triggered input latches, offering a complete converter solution. Both +3V and +5V CMOS logic families can be interfaced to the DAC904.
- The reference structure of the DAC904 allows for additional flexibility by utilizing the on-chip reference, or applying an external reference. The full-scale output current can be adjusted over a span of 2-20mA, with one external resistor, while maintaining the specified dynamic performance.
- The DAC904 is available in SO-28 and TSSOP-28 packages.
DAC904E Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 28 Pin |
| Case/Package | TSSOP-28 |
| Supply Voltage (DC) | 5.00V (max) |
| Number of Outputs | 1 Output |
| Supply Current | 24.0 mA |
| Number of Channels | 1 Channel |
| Number of Bits | 14 Bit |
| Power Dissipation | 0.23 W |
| Sample Rate | 200 Msps |
| Power Consumption | 170 mW |
| Thermal Shutdown | No |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Power Dissipation (Max) | 230 mW |
| Number of DACs | 1 DAC |
| Supply Voltage | 2.7V ~ 5.5V |
| Show | |
| Size-Length | 9.7 mm |
| Size-Width | 4.4 mm |
| Size-Height | 1.15 mm |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance Edition | 2015/06/15 |
| ECCN Code | EAR99 |
