DC1568A - Linear Technology
Manufacturer:
Linear Technology
ManyChip's Part#:
MC117017900
Category:
Microprocessor Development Kit
Datasheet:
Datasheet 3D Model
Description:
LT3652EDD Battery Management 8.14VDC to 8.26VDC Output Demonstration Circuit
Stock Locations:
Availability:
271 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 141.91

Updated at 02/03/2026 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

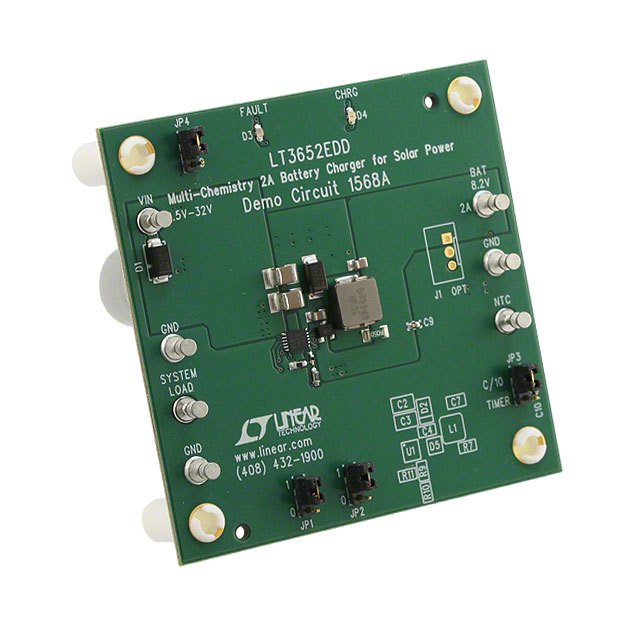

DC1568A demonstration board is a 2A monolithic multichemistry battery charger for solar power applications featuring the LT3652EDD. The LT3652 is a complete mid-power Li ion battery charger that can operate over a wide input voltage range. The charger employs a 3.3V float voltage feedback reference that allows the battery float voltage to be adjusted up to 14.4V. The LT3652 has an input voltage regulation loop which reduces charge current if the input falls below a programmed level, set with a resistor divider. The circuit provides CC/CV charging with a 2A maximum charge current that is programmed by a sense resistor. A precondition feature trickle charges a low voltage battery, and bad battery detection provides a signal if the battery does not respond to preconditioning. DC1568A programs the output voltage to be 8.2V, and the 5.7V precondition threshold is internally set as a fraction of the programmed output voltage.
Input supply voltage regulation loop for peak power tracking in (MPPT) solar applications
User selectable termination: C/10 or On board termination timer
Programmable charge rate up to 2A
5% charge current accuracy
2.5% C/10 detection accuracy
Binary coded open collector status pins

Show

DC1568A Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Number of Outputs	1 Output
Output Current	2000 mA
Switching Frequency	1000 kHz
Input Voltage	11.5VDC ~ 32VDC
	Show
RoHS	Non-Compliant
Lead-Free Status	Contains Lead
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
