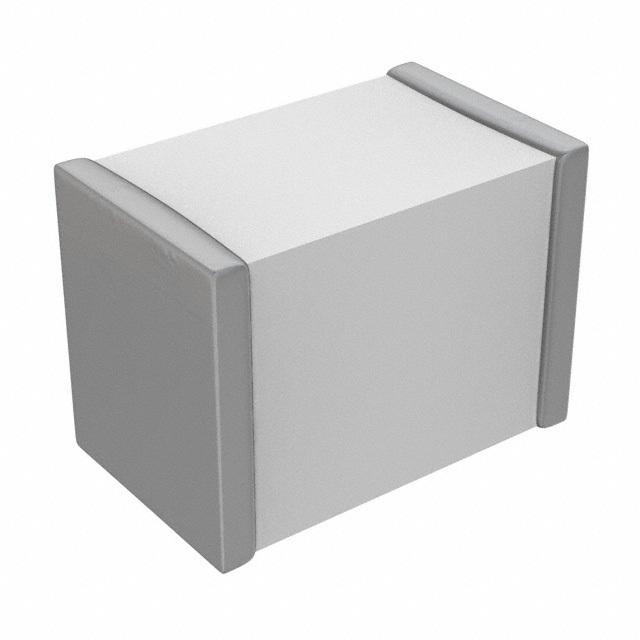

SG420 - Littelfuse
Manufacturer:
Littelfuse
ManyChip's Part#:
MC38713761
Category:
Line Conditioner
Package:
SMD
Datasheet:
Datasheet 3D Model
Description:
LITTELFUSE SG420 Gas Discharge Tube (GDT), Miniature, SG Series, 420V, SMD, 1kA, 1kV
Stock Locations:
Availability:
267 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.5

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Dissipate voltage transients through a contained plasma gas with this SG420 gas discharge tube from Littelfuse. Its DC sparkover voltage is 420 V, and its impulse discharge current (8x20 us, 10 Hits) is 2 A. This item should be stored between -40 °C and 90 °C. This GDT has an operating temperature range of -40 °C to 90 °C. It has 2 terminals/electrodes. The SG420 GDT has a solder pad termination style. Mount your GDT on a printed circuit board using surface mount technology to produce the most effective results. This product is 4.5 mm long, 3.2 mm tall and 2.7 mm deep.

Show

SG420 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Case/Package	SMD
Capacitance Tolerance	±25 %
Resistance	2 Ω
Operating Temperature (Max)	90 ℃
Operating Temperature (Min)	-40 ℃
	Show
Size-Length	4.5 mm
Size-Width	0.3 in
Size-Height	3.2 mm
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2014/12/17
ECCN Code	EAR99
