Description

The DCP021515U is a family of 2W isolated unregulated DC/DC Converter Module. Requiring a minimum of external components and including on-chip device protection, the DCP02 series of device provides extra features such as output disable and synchronization of switching frequencies. This combination of features and small size makes the DCP02 series of device suitable for a wide range of applications and is an easy-to-use solution in applications requiring signal path isolation.
Device-to-device synchronization
EN55022 Class B EMC performance
1kV Operational isolation
This product has operational isolation and is intended for signal isolation only. It should not be used as a part of a safety isolation circuit requiring reinforced isolation.

Show

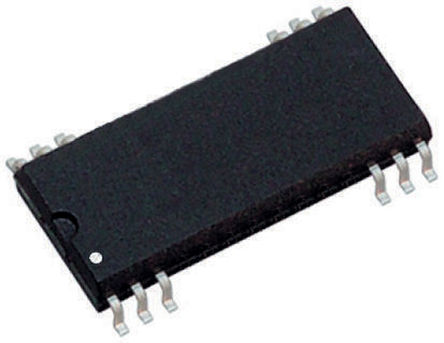

DCP021515U Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	12 Pin
Case/Package	SOP-12
Frequency	800 kHz
Supply Voltage (DC)	15.0 V
Power Rating	2 W
Number of Outputs	1 Output
Input Voltage (DC)	13.5V ~ 16.5V
Output Voltage	15 V
Output Current	133 mA
Number of Positions	12 Position
Quiescent Current	15.0 mA
Number of Regulated Outputs	1 Output
Output Power	2 W
Isolation Voltage	1 kV
Switching Frequency	800 kHz
Input Voltage (Max)	16.5 V
Input Voltage (Min)	13.5 V
Output Current (Max)	133 mA
Input Power (Max)	2 W
Input Power (Max)	180 mW
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Input Voltage	13.5V ~ 16.5V
	Show
Size-Length	17.9 mm
Size-Width	10.33 mm
Size-Height	2.3 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
