Description
- GENERAL DESCRIPTION
- The REF19x series precision band gap voltage references use a patented temperature drift curvature correction circuit and laser trimming of highly stable, thin-film resistors to achieve a very low temperature coefficient and high initial accuracy.
- FEATURES
- Initial accuracy: ±2 mV maximum
- Temperature coefficient: 5 ppm/°C maximum
- Low supply current: 45 μA maximum
- Sleep mode: 15 μA maximum
- Low dropout voltage
- Load regulation: 4 ppm/mA
- Line regulation: 4 ppm/V
- High output current: 30 mA
- Short-circuit protection

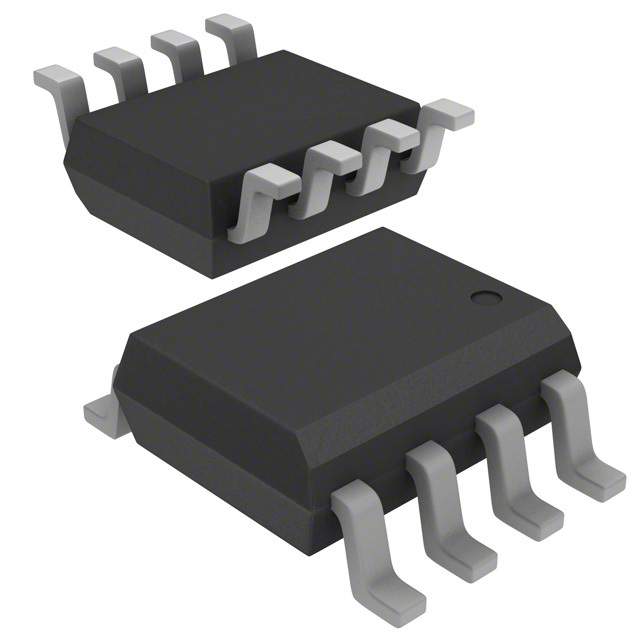

REF191GS Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 8 Pin |
| Case/Package | SOIC-8 |
| Capacitance Tolerance | ±0.5 % |
| Input Voltage (DC) | 15.0V (max) |
| Output Voltage | 2.048 V |
| Output Current | 30 mA |
| Supply Current | 45 µA |
| Number of Channels | 1 Channel |
| Output Voltage (Min) | 2.048 V |
| Input Voltage | 3V ~ 15V |
| Show | |
| Operating Temperature | -40℃ ~ 85℃ |
| Temperature Coefficient | ±25 ppm/℃ |
| Product Lifecycle Status | Obsolete |
| Packaging | Tube |
| RoHS | Non-Compliant |
| Lead-Free Status | Contains Lead |
| HK STC License | NLR |
