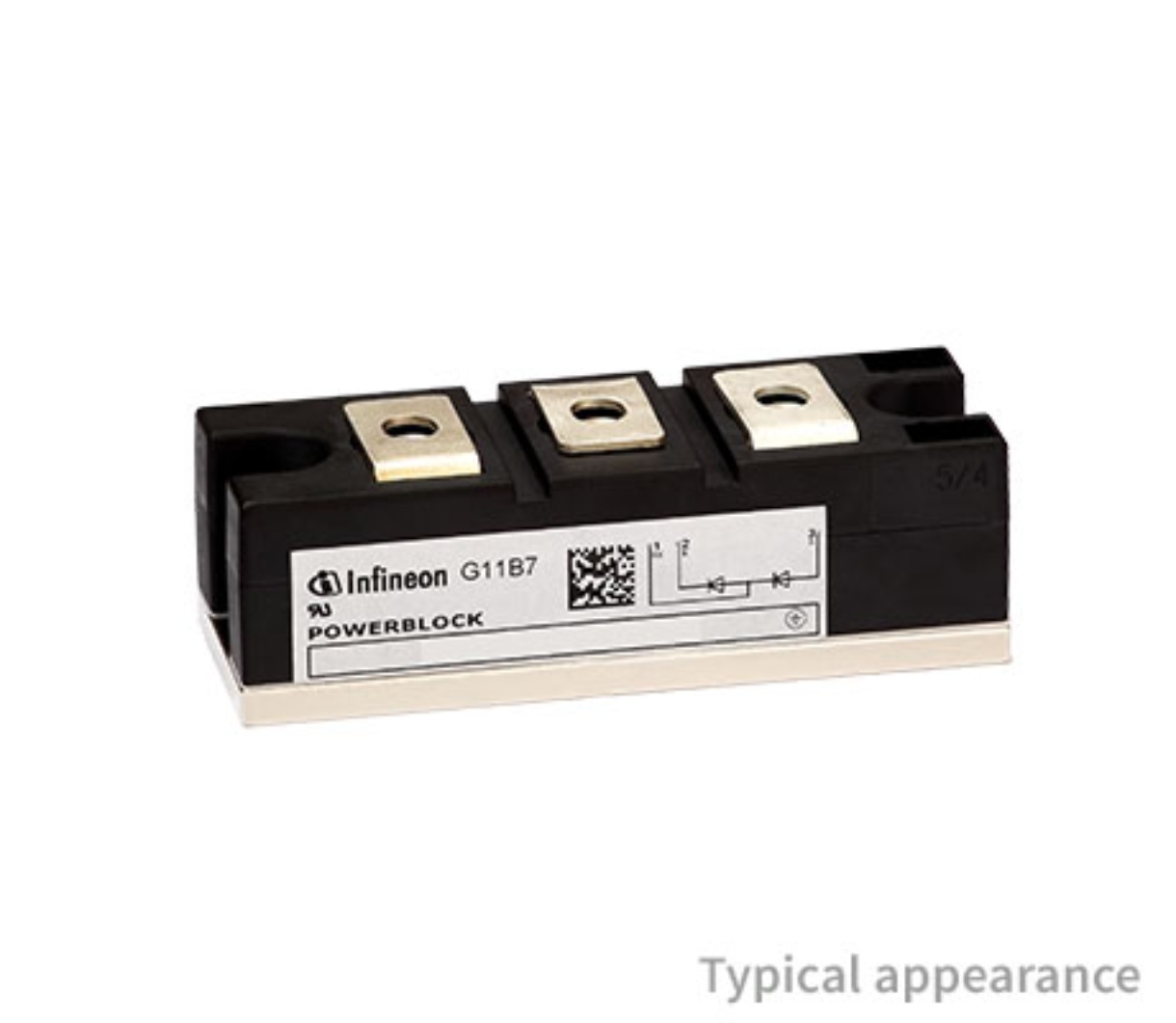

Image is for your reference only,please check specifications for details
- DD171N16K - Infineon
-
Manufacturer:Infineon
-
ManyChip's Part#:MC17545064
-
Category:Schottky Diode
-
Package:BG-PB34-1
-
Datasheet:Datasheet 3D Model
-
Description:Module: diode; double series; 1.6kV; 171A; BG-PB34-1; Ufmax:1.26V
-
Stock Locations:
-
Availability:2 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 264.03
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Summary of Features:
- Pressure contact technology for high reliability
- Industrial standard package
- Electrically insulated baseplate
- Short on fail
- Highest robustness
- Benefits:
- Fail safe
- Preventing arcing on fail
- Easy mounting
- Fuseless design possible due to high overload capability
- UL recognized
DD171N16K Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Screw |
| Number of Pins | 3 Pin |
| Case/Package | BG-PB34-1 |
| Output Current | 270 A |
| Max Forward Surge Current (Ifsm) | 6.6 A |
| Maximum Forward Voltage (Max) | 1.26 V |
| Forward Current (Max) | 170 A |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Show | |
| Size-Length | 94 mm |
| Size-Width | 34 mm |
| Size-Height | 30 mm |
| Operating Temperature | -40℃ ~ 150℃ |
| Product Lifecycle Status | Active |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
Order guide
-
TT in advance (bank transfer), Western Union, Credit card,
PayPal. Customer is responsible for shipping fee, bank
charges, duties and taxes.
-
- You can choose whether shipping charges will be charged through your shipping account or by us.
- Please confirm with the logistics company in advance for remote areas.
(Additional charges ($35-$50) may apply for delivery in these areas)
- Delivery date: usually 2 to 7 working days.
- A tracking number will be sent after your order ships.
- - Carefully inspected and packed by ManyChip warehouse - Vacuum packaging - Anti-static packaging - Shockproof foam
- The terms here are for reference only, the actual terms are subject to the sales quotation. - Please confirm product specifications when ordering. - MOQ refers to the minimum order quantity required to purchase each part. - If you have special ordering instructions, please indicate them on the ordering page. - Inspection (PSI) will be performed prior to shipment.
- - Income Quality Control (IQC), 1000+ qualified dealers. - Chips are tested by authoritative organizations to ensure the quality, authenticity and safety of your device. - Decapsulation control - X-ray control - XRF inspection - Electrical testing - Surface testing -Digital components warehouse, covering an area of 800 square meters, with constant temperature and humidity
