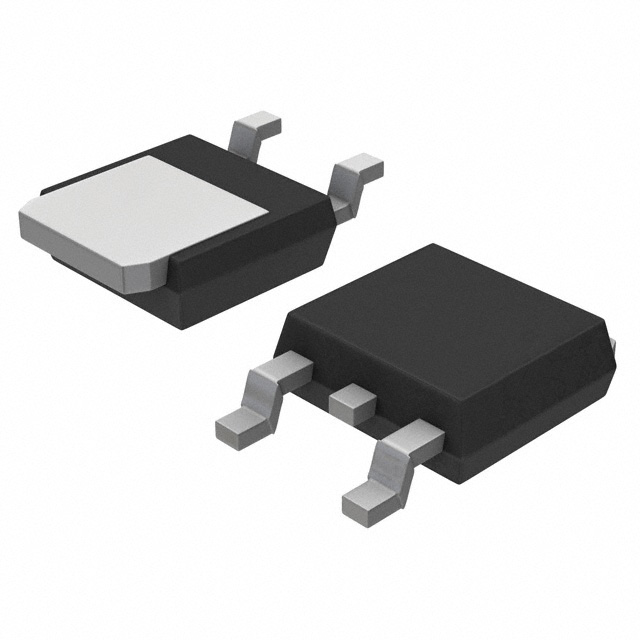

NTD3055L104 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	TO-252-3
Voltage Rating (DC)	60.0 V
Current Rating	25.0 A
Number of Channels	1 Channel
Drain to Source Resistance (on) (Rds)	104 mΩ
Polarity	N-Channel
Power Dissipation	48 W
Threshold Voltage	2 V
Input Capacitance	440 pF
Gate Charge	20.0 nC
Drain to Source Voltage (Vds)	60 V
Breakdown Voltage (Drain to Source)	60 V
Breakdown Voltage (Gate to Source)	±15.0 V
Continuous Drain Current (Ids)	12.0 A
Rise Time	104 ns
Input Capacitance (Ciss)	440pF @25V(Vds)
Input Power (Max)	1.5 W
Fall Time	40.5 ns
Operating Temperature (Max)	175 ℃
Operating Temperature (Min)	55 ℃
Power Dissipation (Max)	1.5 W
	Show
Size-Length	6.73 mm
Size-Width	6.22 mm
Size-Height	2.38 mm
Operating Temperature	-55℃ ~ 175℃ (TJ)
Product Lifecycle Status	Unknown
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Contains Lead
