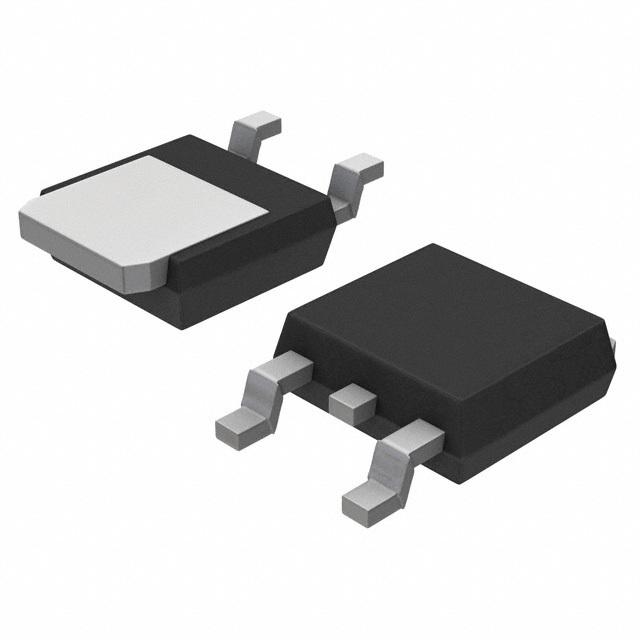

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

High Voltage Power Transistors
DPAK for Surface Mount Applications
Designed for line operated audio output amplifier, switchmode supply drivers and other switching applications.
Features
• Lead Formed for Surface Mount Applications in Plastic Sleeves (No Suffix)
• Electrically Similar to Popular TIP47, and TIP50
• Epoxy Meets UL 94 V−0 @ 0.125 in
• NJV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q101 Qualified and PPAP Capable
• These Devices are Pb−Free and are RoHS Compliant

Show

MJD47 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Case/Package	TO-252-3
Voltage Rating (DC)	250 V
Current Rating	1.00 A
Polarity	N-Channel
Power Dissipation	1.56 W
Breakdown Voltage (Collector to Emitter)	250 V
Continuous Collector Current	1A
hFE Min	30 @300mA, 10V
hFE Max	150
Input Power (Max)	1.56 W
	Show
Operating Temperature	-65℃ ~ 150℃ (TJ)
Product Lifecycle Status	Unknown
Packaging	Tube
Minimum Packing Quantity	2500
RoHS	Non-Compliant
Lead-Free Status	Contains Lead
