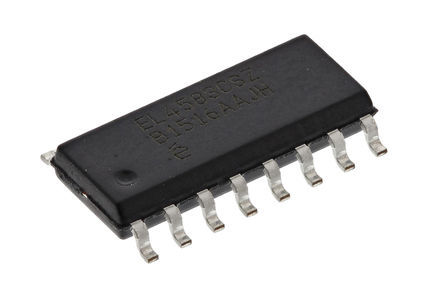

Image is for your reference only,please check specifications for details

DG403DYZ - Intersil
Manufacturer:
Intersil
ManyChip's Part#:
MC14715660
Category:
Analog Switch Ic, Analog Switch Multiplexer
Package:
SOIC-16
Datasheet:
Datasheet 3D Model
Description:
INTERSIL DG403DYZ Analog Switch, Quad Channel, SPDT, 4Channels, 45Ω, 5V to 34V, SOIC, 16Pins
Stock Locations:
Availability:
674 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 1.2

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The DG403DYZ is a Monolithic CMOS Analogue Switch have TTL and CMOS compatible digital inputs. These switches feature low analogue ON resistance (<45R) and fast switch time (tON<150ns). Low charge injection simplifies sample and hold applications. The improvements in the DG403 series are made possible by using a high voltage silicon-gate process. An epitaxial layer prevents the latch-up associated with older CMOS technologies. The 44V maximum voltage range permits controlling 30VP-P signals. Power supplies may be single-ended from +5 to +34V or split from ±5 to ±17V. The analogue switches are bilateral, equally matched for AC or bidirectional signals. The ON resistance variation with analogue signals is quite low over a ±15V analogue input range. The three different devices provide the equivalent of two SPDT (DG403) relay switch contacts with CMOS or TTL level activation. The pinout is similar, permitting a standard layout to be used, choosing the switch function as needed.
<35µW Low power consumption (PD)
150ns tON (maximum), 100ns tOFF (maximum) Fast switching action
Low charge injection
Dual SPDT - DG190, IH5043, IH5151, HI-5051
TTL, CMOS compatible
Single or split supply operation
ESD sensitive device, take proper precaution while handling the device.

Show

DG403DYZ Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	16 Pin
Case/Package	SOIC-16
Number of Outputs	4 Output
Contacts Type	SPDT
Supply Current	10 nA
Number of Circuits	2 Circuit
Number of Channels	2 Channel
Number of Positions	16 Position
Drain to Source Resistance (on) (Rds)	45.0 Ω
Number of Bits	2 Bit
Number of Inputs	4 Input
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	5V ~ 34V
Supply Voltage (Max)	34 V
Supply Voltage (Min)	5 V
	Show
Size-Length	10 mm
Size-Width	4 mm
Size-Height	1.5 mm
Operating Temperature	-40℃ ~ 85℃ (TA)
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
