Description
- The DG408 Single 8-Channel, and DG409 Differential 4-Channel monolithic CMOS analog multiplexers are drop-in replacements for the popular DG508A and DG509A series devices. They each include an array of eight analog switches, a TTL/CMOS compatible digital decode circuit for
- channel selection, a voltage reference for logic thresholds and an ENABLE input for device selection when several multiplexers are present.
- Features
- • ON Resistance (Max, 25°C) . . . . . . . . . . . . . . . . . . . 100Ω
- • Low Power Consumption (PD) . . . . . . . . . . . . . . .<11mW
- • Fast Switching Action
- -tTRANS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . <250ns
- -tON/OFF(EN). . . . . . . . . . . . . . . . . . . . . . . . . . . . <150ns
- • Low Charge Injection
- • Upgrade from DG508A/DG509A
- • TTL, CMOS Compatible
- • Single or Split Supply Operation
- • Pb-Free Plus Anneal Available (RoHS Compliant)

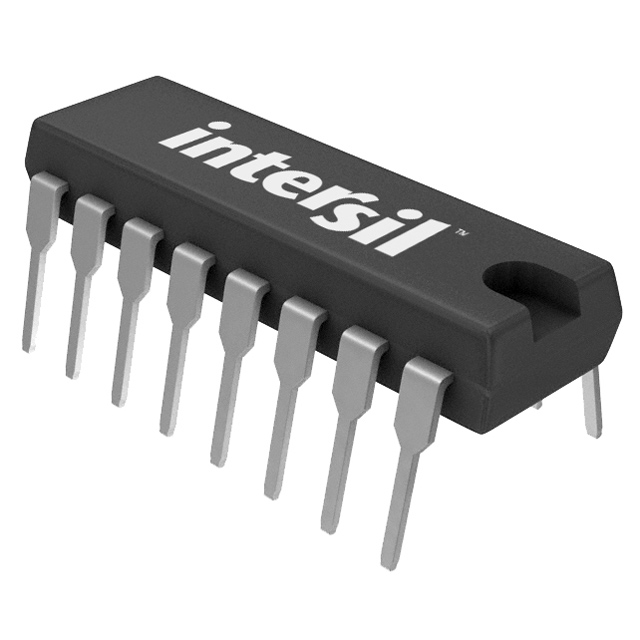

DG408DJ Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 16 Pin |
| Case/Package | DIP-16 |
| Supply Voltage (DC) | 5.00V (min) |
| Number of Outputs | 1 Output |
| Contacts Type | DPST-NC |
| Supply Current | 200 µA |
| Number of Circuits | 1 Circuit |
| Number of Channels | 1 Channel |
| Drain to Source Resistance (on) (Rds) | 40.0 Ω |
| Power Dissipation | 11 W |
| Number of Inputs | 8 Input |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Show | |
| Size-Height | 4.95 mm |
| Operating Temperature | -40℃ ~ 85℃ (TA) |
| Product Lifecycle Status | Obsolete |
| Packaging | Each |
| RoHS | Non-Compliant |
| Lead-Free Status | Contains Lead |
