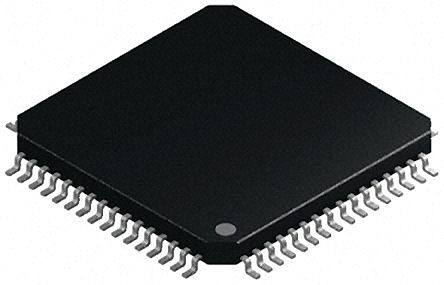

Image is for your reference only,please check specifications for details

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The DP83867IRPAPT is a robust low power fully-featured Physical-layer Transceiver with integrated PMD sublayers to support 10BASE-Te, 100BASE-TX and 1000BASE-T Ethernet protocols. Optimized for ESD protection, the DP83867 exceeds 8kV IEC 61000-4-2 (direct contact). It is designed for easy implementation of 10/100/1000Mbps Ethernet LANs. It interfaces directly to twisted pair media via an external transformer. This device interfaces directly to the MAC layer through the IEEE 802.3 standard media independent interface (MII), the IEEE 802.3 gigabit media independent interface (GMII) or reduced GMII (RGMII). It provides precision clock synchronization, including a synchronous Ethernet clock output. It has low latency and provides IEEE 1588 Start of Frame Detection. It consumes only 490mW (PAP) and 457mW (RGZ) under full operating power. Wake on LAN can be used to lower system power consumption.
Low power consumption 457mW
Exceeds 8kV IEC 61000-4-2 ESD protection
Meets EN55011 class B emission standards
Integrated MDI termination resistors
WoL (Wake on LAN) Packet detection
IEEE 1588 Time stamp support
RJ45 Mirror mode
Fast link up/link drop modes
JTAG Support
Green product and no Sb/Br

Show

DP83867IRPAPT Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	64 Pin
Case/Package	TQFP-64
Supply Voltage (DC)	3.15V (min)
Supply Current	157 mA
Number of Channels	4 Channel
Number of Positions	64 Position
Data Rate	1.00 Gbps
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	1.1V, 2.5V
Supply Voltage (Max)	3.45 V
Supply Voltage (Min)	3.15 V
	Show
Size-Length	10.2 mm
Size-Width	10.2 mm
Size-Height	1.05 mm
Cable Length	130 m
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
