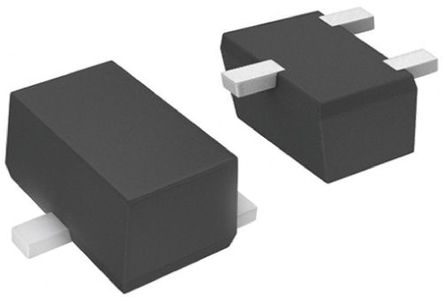

Image is for your reference only,please check specifications for details

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Pre-Biased Bipolar Transistor (BJT) NPN - Pre-Biased 50V 100mA 100mW Surface Mount SSSMini3-F2-B

Show

DRC3114E0L Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	SSSMini3-F2-B
Number of Positions	3 Position
Polarity	NPN
Power Dissipation	100 mW
Breakdown Voltage (Collector to Emitter)	50 V
Continuous Collector Current	100mA
hFE Min	35 @5mA, 10V
Input Power (Max)	100 mW
DC Current Gain (hFE)	35
Operating Temperature (Max)	150 ℃
Power Dissipation (Max)	100 mW
	Show
Size-Length	1.2 mm
Size-Width	0.8 mm
Size-Height	0.47 mm
Operating Temperature	-55℃ ~ 150℃
Product Lifecycle Status	Unknown
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
