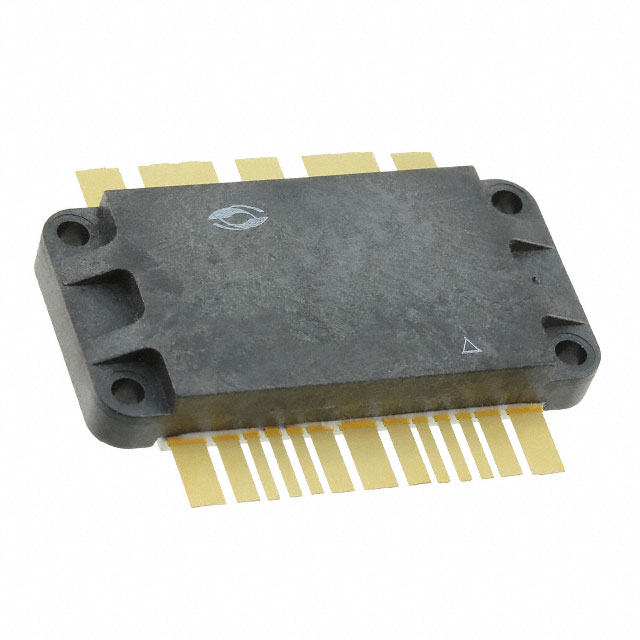

Image is for your reference only,please check specifications for details
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Never worry about your high power transistor not turning on and off by using this DRF1300 power driver by Microsemi. This device has a maximum power dissipation of 2500000 mW. Its maximum power dissipation is 2500000 mW. This device has a minimum operating supply voltage of 10 V and a maximum of 15 V. This gate driver has a maximum operating temperature of 175 °C.
DRF1300 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Number of Pins | 18 Pin |
| Case/Package | 18-Module |
| Frequency | 30 MHz |
| Number of Outputs | 2 Output |
| Power Dissipation | 2500 W |
| Rise Time | 5 ns |
| Output Current (Max) | 30 A |
| Fall Time | 5 ns |
| Fall Time (Max) | 5 ns |
| Fall Time (Max) | 5 ns |
| Operating Temperature (Max) | 175 ℃ |
| Power Dissipation (Max) | 2500000 mW |
| Supply Voltage | 10V ~ 15V |
| Show | |
| Product Lifecycle Status | Active |
| Packaging | Box |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
