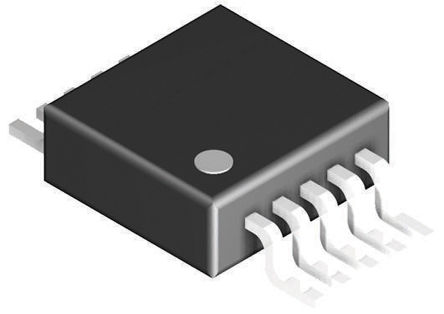

DRV2605LDGST - TI
Manufacturer:
TI
ManyChip's Part#:
MC541695
Category:
Motor Driver
Package:
VSSOP-10
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS DRV2605LDGST Special Function IC, Wireless Power Transmitter, 3V to 3.6V in, VQFN-64
Stock Locations:
Availability:
3,070 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 2.79

Updated at 27/10/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The DRV2605LDGST is a low-voltage Haptic Driver which includes a haptic-effect library and provides a closed-loop actuator-control system for high-quality haptic feedback for ERM and LRA. The device offers a licensed version of TouchSense 2200 software from Immersion which eliminates the need to design haptic waveforms because the software includes over 100 licensed effects (6 ERM libraries and 1 LRA library) and audio- to-vibe features. The DRV2605L device also features automatic transition to an open-loop system in the event that an LRA actuator is not generating a valid back-EMF voltage. When the LRA generates a valid back-EMF voltage, the DRV2605L device automatically synchronizes with the LRA. The DRV2605L also allows for open-loop driving through the use of internally-generated PWM.
I²C-controlled digital playback engine
Waveform sequencer and trigger
Real-time playback mode through I²C
I²C Dual-mode drive (Open and Closed loop)
Smart-loop architecture
Automatic overdrive and braking
Automatic actuator diagnostic
Automatic level calibration
Wide support for actuator models
Drive compensation over battery discharge
Efficient differential switching output drive
PWM input with 0% to 100% duty-cycle control range
Hardware trigger input
Fast start-up time
1.8V compatible, VDD-tolerant digital interface

Show

DRV2605LDGST Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	10 Pin
Case/Package	VSSOP-10
Supply Voltage (DC)	2.00V (min)
Number of Positions	10 Position
Quiescent Current	500 µA
Switching Frequency	250 kHz
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	2V ~ 5.5V
Supply Voltage (Max)	5.2 V
Supply Voltage (Min)	2 V
	Show
Size-Length	3.1 mm
Size-Width	3.1 mm
Size-Height	0.95 mm
Operating Temperature	-40℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
