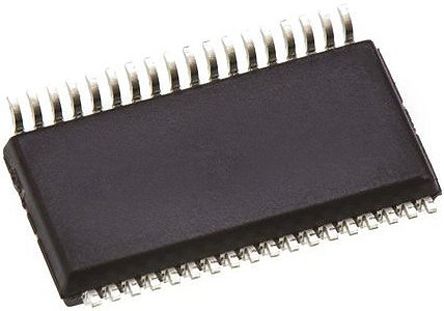

Image is for your reference only,please check specifications for details

DRV8402DKD - TI
Manufacturer:
TI
ManyChip's Part#:
MC36428635
Category:
Motor Driver
Package:
BSSOP-36
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS DRV8402DKD PWM Motor Driver, Full Bridge, 0V to 52.5V supply, 5V/10A/4Outputs, HSSOP-36
Stock Locations:
Availability:
257 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 9.53

Updated at 04/12/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The DRV8402DKD is a dual high-performance integrated full bridge PWM Motor Driver with an advanced protection system. Because of the low RDS (on) and intelligent gate drive design, the efficiency of this motor driver can be up to 96%, which enables the use of smaller power supplies and heat sinks and is a good candidate for energy efficient applications. This device requires two power supplies, one at 12V for GVDD and VDD and one up to 50V for PVDD. It is capable of driving 5A continuous RMS current and 12A peak current per full bridge with low idle power dissipation. It can also be used for up to 10A continuous current and 24A peak current in parallel full bridge operation. It can operate at up to 500kHz switching frequency while still maintains precise control and high efficiency. It also has an innovative protection system integrated on-chip, safeguarding the device against a wide range of fault conditions that could damage the system.
Short-circuit, overcurrent, under-voltage and two-stage thermal protection
High-efficiency power stage (up to 96%) with low RDS(on) MOSFETs (80mµ at TJ=25°C)
Integrated self-protection circuits
Programmable cycle-by-cycle current limit protection
Independent supply and ground pins for each half bridge
Intelligent gate drive and cross conduction prevention
No external snubber or Schottky diode is required
PWM operating frequency up to 500kHz
24A Peak current per device
Green product and no Sb/Br

Show

DRV8402DKD Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	36 Pin
Case/Package	BSSOP-36
Frequency	500 kHz
Supply Voltage (DC)	0.00V(min), 52.5V(max)
Number of Outputs	4 Output
Output Voltage	5 V
Output Current	10 A
Supply Current	12 mA
Number of Channels	2 Channel
Number of Positions	36 Position
Input Current	9.00 mA
Output Current (Max)	10 A
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	11.4V ~ 13.2V
Supply Voltage (Max)	52.5 V
Supply Voltage (Min)	0 V
	Show
Size-Length	15.9 mm
Size-Width	11 mm
Size-Height	3.15 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Not Recommended for New Designs
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
