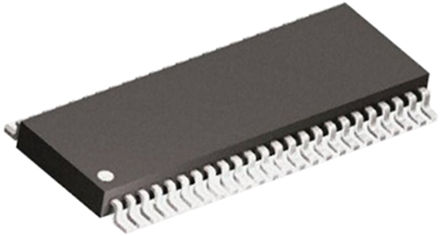

Image is for your reference only,please check specifications for details

DRV8821DCA - TI
Manufacturer:
TI
ManyChip's Part#:
MC9392641
Category:
Motor Driver
Package:
HTSSOP-48
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS DRV8821DCA Motor Driver/Controller, Stepper, 8V to 32V supply, 0.6Ω RDS, 1.5A/4Outputs, HTSSOP-48
Stock Locations:
Availability:
237 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 2.09

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The DRV8821DCA is a dual bipolar microstepping-capable Stepper Motor Controller/Driver with 1/8 microstepping indexer (step/direction control). It is designed for printers, scanners and other office automation equipment applications. Two independent stepper motor driver circuits include four H-bridge drivers and microstepping-capable indexer logic. Each of the motor driver blocks employ N-channel power MOSFETs configured as an H-bridge to drive the motor windings. A simple step/direction interface allows easy interfacing to controller circuits. Pins allow configuration of the motor in full-step, half-step, quarter-step or eighth step modes and the selection of slow or mixed decay modes. Internal shutdown functions are provided for overcurrent protection, short-circuit protection, under-voltage lockout and over-temperature.
Built-in micro stepping indexers
Three-bit winding current control allows up to eight current levels
Low MOSFET on-resistance
Internal charge pump for gate drive
Built-in 3.3V reference
Simple step/direction interface
Indexer control I/F
8 Current regulation levels
Green product and no Sb/Br

Show

DRV8821DCA Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	48 Pin
Case/Package	HTSSOP-48
Supply Voltage (DC)	8.00V (min)
Number of Outputs	8 Output
Output Current	1.5 A
Number of Positions	48 Position
Drain to Source Resistance (on) (Rds)	550 mΩ
Switching Frequency	50 kHz
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	8V ~ 32V
Supply Voltage (Max)	32 V
Supply Voltage (Min)	8 V
	Show
Size-Length	12.6 mm
Size-Width	6.2 mm
Size-Height	1.05 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
