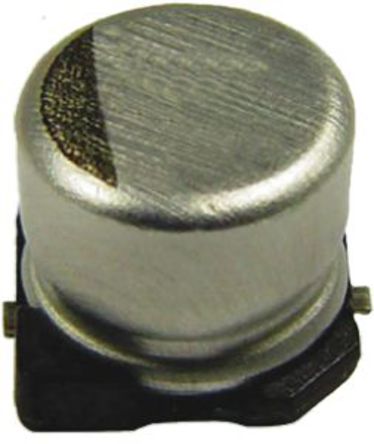

Image is for your reference only,please check specifications for details

EEHZA1K220P - Panasonic
Manufacturer:
Panasonic
ManyChip's Part#:
MC30126163
Category:
Capacitor
Package:
SMD
Datasheet:
Datasheet 3D Model
Description:
Cap Aluminum Polymer Hybrid 22uF 80VDC 20% (8 X 10.2mm) SMD 0.045Ω 1550mA 10000H 105℃ Automotive T/R
Stock Locations:
Availability:
0 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

EEHZA1K220P Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Case/Package	SMD
Voltage Rating (DC)	80.0 V
Capacitance	22 µF
Equivalent Series Resistance (ESR)	0.045 Ω
Capacitance Tolerance	±20 %
Ripple Current	1550 mA
Operating Temperature (Max)	105 ℃
Operating Temperature (Min)	-55 ℃
Accuracy	±20 %
Voltage Rating	80 V
	Show
Size-Height	10.2 mm
Size-Diameter	8.00 mm
Operating Temperature	-55℃ ~ 105℃
Product Lifecycle Status	Unknown
Packaging	Cut Tape (CT)
Life (Hours)	10000h @105℃
RoHS	RoHS Compliant
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
