EKMC1601113 Panasonic Semiconductor - Infrared Sensor

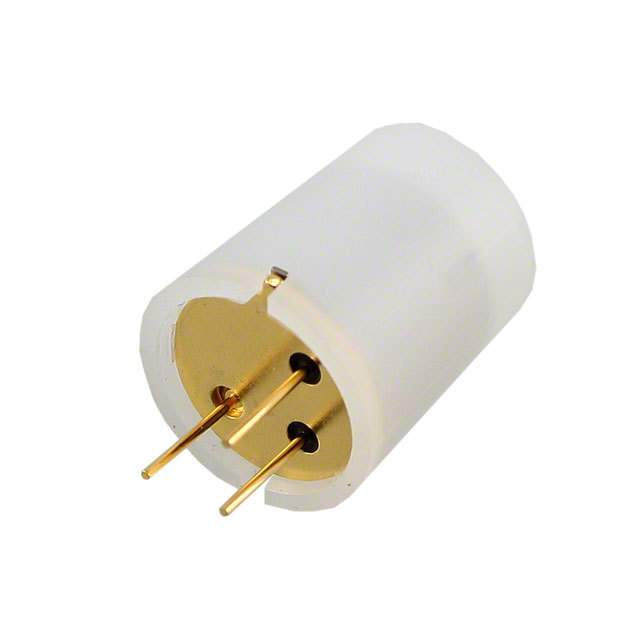

Image is for your reference only,please check specifications for details

EKMC1601113 - Panasonic Semiconductor
Manufacturer:
Panasonic Semiconductor
ManyChip's Part#:
MC2233541
Category:
Infrared Sensor
Package:
TO-5
Datasheet:
Datasheet 3D Model
Description:
PANASONIC ELECTRIC WORKS EKMC1601113 – датчик PIR, цифровой, цвета перламутра, дальность обнаружения 5 метров, напряжение питания 3 ВDC, 6 ВDC, угол обзора 94°, серия EKMC.
Stock Locations:
Availability:
56 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 10.24

Updated at 31/10/2026 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

EKMC1601113 – высокочувствительный датчик движений с функцией обнаружения человека, оснащенный встроенным усилителем. Серия VZ предусматривает упрощенную схему электронной структуры с полностью интегрированным дизайном. Снижение токовой потребности позволяет увеличить срок службы батареи для устройств, работающих от батарей, включая беспроводные и устройства с низким энергопотреблением. Вся электронная структура заключена в металлическую корпусную оболочку, что обеспечивает высокую электромагнитную защиту. Для обнаружения на одинаковом расстоянии достаточно короткой фокусной дистанции, что позволяет добиться как миниатюризации, так и повышения чувствительности.
Очень низкая токовая потребность
Схемы обнаружения заключены в корпус типа TO5
Отличная устойчивость к шуму
Миниатюрные линзы с маленькими элементами

Show

EKMC1601113 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-5
Supply Voltage (DC)	3.00V (min)
Output Current	100 µA
Operating Temperature (Max)	60 ℃
Operating Temperature (Min)	-20 ℃
Supply Voltage	3V ~ 6V
Supply Voltage (Max)	6 VDC
Supply Voltage (Min)	3 VDC
	Show
Size-Height	14.4 mm
Operating Temperature	-20℃ ~ 60℃
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
