EP12SD1AVBE C&K Components - Pushbutton Switch, Switch Push button

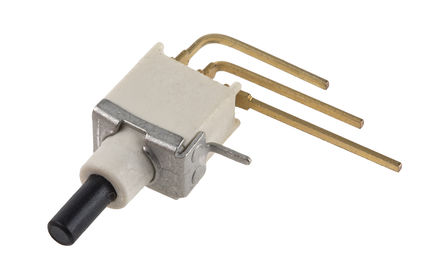

Image is for your reference only,please check specifications for details

EP12SD1AVBE - C&K Components
Manufacturer:
C&K Components
ManyChip's Part#:
MC1663926
Category:
Pushbutton Switch, Switch Push button
Package:
Through Hole
Datasheet:
Datasheet 3D Model
Description:
Переключатель: кнопочный; 1 положение; SPDT; 0,02 А / 20 В переменного тока; 0,02 А / 20 В постоянного тока
Stock Locations:
Availability:
308 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 11.69

Updated at 05/10/2026 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Герметичная миниатюрная кнопка серии EP с контактами из медного сплава с золотым покрытием поверх никелевого подслоя и эпоксидной герметизацией выводов.
Герметизирована от воздействия процессов пайки и очистки.
Модели для сквозного и поверхностного монтажа.
Защелкивающийся толкатель совместим со стандартными колпачками.

Show

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Case/Package	Through Hole
Contact Plating	Gold
Voltage Rating (DC)	20 V
Voltage Rating (AC)	20 V
Insulation Resistance	1000 MΩ
Number of Rows	1 Row
Power Rating	400 mW
Contacts Type	SPDT
Contact Resistance	20.0 mΩ
Contact Current Rating	400mA @20V
Rating Power (Max)	0.4 W
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-30 ℃
Voltage Rating	20 VDC
Voltage Rating (DC Max)	20 V
Voltage Rating (AC Max)	20 V
Maximum Contact Resistance (Max)	<20 mΩ
	Show
Size-Length	6.22 mm
Size-Width	5.08 mm
Size-Height	8.77 mm
Color	Red
Contact Material	Copper Alloy
Operating Temperature	-30℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tray
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2016/06/20
ECCN Code	EAR99
