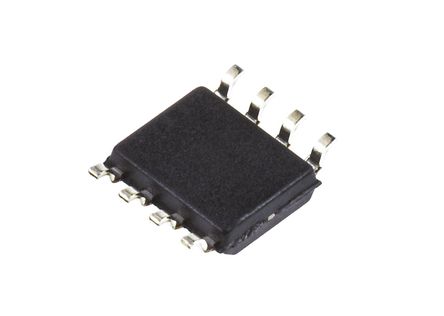

Image is for your reference only,please check specifications for details

ESDA6V1U1 - ST Microelectronics
Manufacturer:
ST Microelectronics
ManyChip's Part#:
MC10031032
Category:
TVS Diode
Package:
SOIC-8
Datasheet:
Datasheet 3D Model
Description:
ESDA Series 6Channel 6.1V 100pF SMT Uni-Directional Transil Array - SOIC-8
Stock Locations:
Availability:
1,739 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.31

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The ESDA6V1U1 is a Transil™ Monolithic TVS Array for ESD protection designed to protect components which are connected to data and transmission lines against ESD. It clamps the voltage just above the logic level supply for positive transients and to a diode drop below ground for negative transients.
6 Unidirectional Transil™ functions
<2µA Maximum low leakage current (IR)
200W (8/20 µs) Peak pulse power
High ESD protection level up to 25kV
High integration
Suitable for high density boards

Show

ESDA6V1U1 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	SOIC-8
Voltage Rating (DC)	6.10 V
Operating Voltage	1.50 V
Capacitance	100 pF
Power Rating	200 W
Breakdown Voltage	6.1 V
Number of Circuits	6 Circuit
Number of Positions	8 Position
Test Current	1 mA
Max Breakdown Voltage	7.2 V
Peak Pulse Power	200 W
Min Breakdown Voltage	6.1 V
Reverse Breakdown Voltage	6.1 V
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-55 ℃
	Show
Size-Length	5 mm
Size-Width	4 mm
Size-Height	1.25 mm
Operating Temperature	-55℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
Mil-Spec	Yes
REACH SVHC Compliance Edition	2014/06/16
ECCN Code	EAR99
