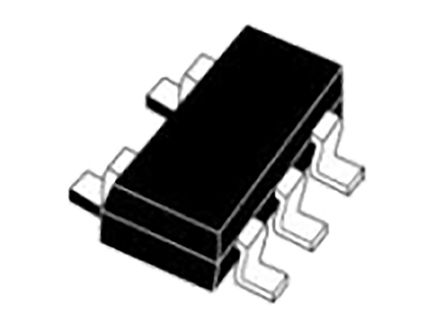

- ESDA6V1W5 - ST Microelectronics
-
Manufacturer:ST Microelectronics
-
ManyChip's Part#:MC223662
-
Category:TVS Diode
-
Package:SOT-323-5
-
Datasheet:Datasheet 3D Model
-
Description:ESDA Series 4Channel 6.1V 90pF SMT Uni-Directional Transil Array - SOT-323-5L
-
Stock Locations:
-
Availability:8,368 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0.04
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The ESDA6V1W5 is a TRANSIL™ ESD Protection Array Device for data protection. It is designed to protect components connected to data and transmission lines against ESD. The device clamps the voltage just above the logic level supply for positive transients and to a diode drop below ground for negative transients.
- <1µA Low leakage current
- High ESD protection level up to 25kV
- High integration
- -40 to 125°C Operating temperature range
ESDA6V1W5 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 5 Pin |
| Case/Package | SOT-323-5 |
| Voltage Rating (DC) | 6.10 V |
| Operating Voltage | 1.25 V |
| Capacitance | 90 pF |
| Power Rating | 150 W |
| Breakdown Voltage | 6.1 V |
| Number of Circuits | 4 Circuit |
| Number of Channels | 4 Channel |
| Number of Positions | 5 Position |
| Test Current | 1 mA |
| Peak Pulse Power | 150 W |
| Min Breakdown Voltage | 6.1 V |
| Reverse Breakdown Voltage | 6.1 V |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Show | |
| Size-Length | 2.2 mm |
| Size-Width | 1.35 mm |
| Size-Height | 1 mm |
| Operating Temperature | -40℃ ~ 125℃ (TJ) |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| Mil-Spec | Yes |
| ECCN Code | EAR99 |
| HK STC License | NLR |
