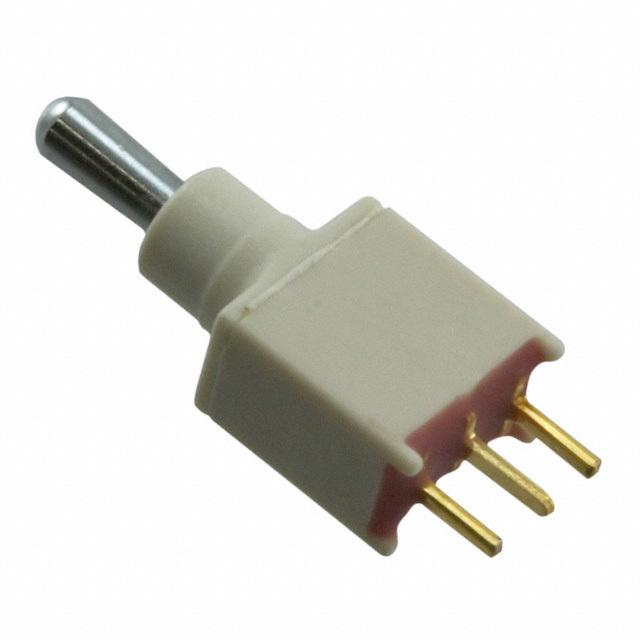

Image is for your reference only,please check specifications for details

ET03MD1CBE - C&K Components
Manufacturer:
C&K Components
ManyChip's Part#:
MC3251657
Category:
Toggle Switch, Switch Toggle
Package:
-
Datasheet:
Datasheet 3D Model
Description:
Switch Toggle ON OFF ON SPDT Round Lever PC Pins 20VAC 20VDC 0.4VA PC Mount
Stock Locations:
Availability:
261 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 3.99

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The ET series sealed Miniature Toggle Switch used for protection against harmful dust deposit, full-scale voltage protection and temporary immersion. It has sealed against solder and cleaning process contaminants. It is process sealed to withstand machine soldering temperatures and pressure wash cleaning methods.
Compact size and small footprint save PCB space
ESD protection available
Thru-hole and surface mount models

Show

ET03MD1CBE Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Case/Package	-
Voltage Rating (DC)	20 V
Voltage Rating (AC)	20 V
Number of Rows	1 Row
Power Rating	0.4 VA
Contacts Type	SPDT
Contact Resistance	10 mΩ
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-30 ℃
Voltage Rating (DC Max)	20 V
Voltage Rating (AC Max)	20 V
Maximum Contact Resistance (Max)	<20 mΩ
	Show
Size-Length	8.13 mm
Size-Height	19.49 mm
Contact Material	Copper Alloy
Operating Temperature	-30℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2016/06/20
HTS Code	8536509065
ECCN Code	EAR99
